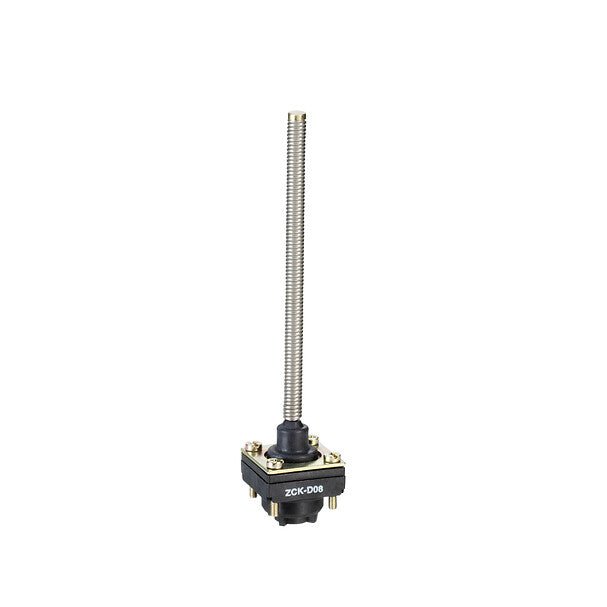

Telemecanique ZCKD08 Limit Switch Head Spring Rod Lever Multi-Directional

The Telemecanique ZCKD08 is an XC Standard multi-directional limit switch head with a spring-return spring rod lever and metal head. It mounts on XCKL, XCKM and XCKS limit switch bodies and is operated by any moving part from any direction, making it a flexible actuator for detecting objects whose approach path varies.

Technical specifications:

• Part number: ZCKD08
• Manufacturer: Telemecanique Sensors
• Range: Telemecanique Limit switches XC Standard, ZCKD heads
• Type: limit switch head, multi-directional
• Operator: spring rod lever, spring return
• Approach: multi-directional
• Actuation: by any moving part
• Head material: metal
• Positive opening: without
• Compatible body families: XCKL, XCKM, XCKS (for example ZCKS1, ZCKM1, ZCKL1, ZCKS1H29, ZCKM1H7)
• Operating temperature: -25 to 70 °C
• Storage temperature: -40 to 70 °C

Features and benefits:

• Spring rod responds to movement from any direction
• Spring return to rest position after actuation
• Fits a wide range of XCKL, XCKM and XCKS bodies
• Head can be replaced without changing the body or wiring

Applications:

• Detection of objects with varying approach direction
• Conveyor jam and presence detection
• Replacement head for XC Standard ZCK limit switches

Part of the Telemecanique XC Standard limit switch range.

Also known as: ZCKD08 limit switch head, Telemecanique spring rod head, XC Standard ZCKD multi-directional head, ZCK-D08, spring rod limit switch actuator
