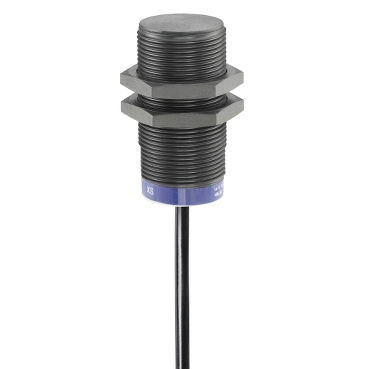

Telemecanique XS4P18AB120 Inductive Sensor M18 Analogue 4-20mA Sn 8mm

The Telemecanique XS4P18AB120 is an XS4 inductive proximity sensor in a non flush mountable M18 plastic barrel with an 8 mm nominal sensing distance. Unlike a switching proximity sensor it gives a 4 to 20 mA analogue output proportional to target distance, over a 2-wire connection with a 2 m cable.

Technical specifications:

• Commercial reference: XS4P18AB120
• Manufacturer: Telemecanique
• EAN: 3389110336184
• Series / range: Telemecanique Inductive proximity sensors XS
• Series name: Application
• Sensor type: Inductive proximity sensor
• Sensor name: XS4
• Sensor design: Cylindrical M18
• Flush mounting: Non flush mountable
• Nominal sensing distance [Sn]: 8 mm
• Type of output signal: Analogue
• Analogue output range: 4...20 mA
• Output circuit type: DC
• Wiring technique: 2-wire
• Electrical connection: Cable
• Cable length: 2 m
• Cable composition: 3 x 0.34 mm²
• Rated supply voltage [Us]: 12...24 V DC
• Supply voltage limits: 10...38 V DC
• Switching frequency: <= 500 Hz
• Current consumption: 4 mA no-load
• Operating zone: 0.8...8 mm
• Repeat accuracy: <= 3% of Sr
• Linearity error: +/- 2 mA
• Thread type: M18 x 1
• Threaded length: 26 mm
• Detection face: Frontal
• Front material: PPS
• Enclosure material: PBT
• Length: 41 mm
• Height: 18 mm
• Net weight: 0.08 kg
• IP degree of protection: IP67 conforming to IEC 60529
• Ambient air temperature for operation: -25...70 °C
• Marking: CE

Features and benefits:

• Analogue 4 to 20 mA output reports distance, not just presence
• 2-wire connection keeps wiring simple over long runs
• Non flush M18 barrel gives a longer 8 mm sensing distance
• PBT plastic housing resists corrosion where metal barrels suffer
• IP67 rated for damp and dusty industrial environments

Applications:

• Continuous position or displacement measurement of a metal target
• Runout, eccentricity and wear monitoring on rotating machinery
• Thickness and gap measurement in process and converting lines

Also known as: Telemecanique XS4P18AB120, XS4P18AB120 OsiSense XS analogue inductive sensor, XS4 M18 4-20mA sensor.
