Telemecanique XCKVR24SR1H29 Limit Switch Stay Put Cross Rods 2x(NC+NO) M20

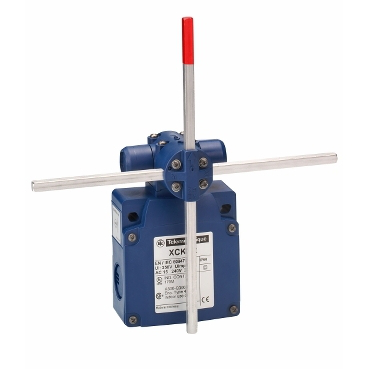

The Telemecanique XCKVR24SR1H29 is an OsiSense XC XCKVR limit switch with a stay put crossed rods lever 6 mm. It has 2 x (1 NC + 1 NO) contacts (slow-break, break before make) and 1 entry tapped and 2 breakout holes for M20 x 1.5 cable gland. Degree of protection: IP65 conforming to IEC 60529.

Technical specifications:

• Commercial reference: XCKVR24SR1H29
• Manufacturer: Telemecanique Sensors
• EAN: 3389119077460
• Range: OsiSense XC
• Series: Special format
• Product type: Limit switch
• Device short name: XCKVR
• Application: For hoisting and mechanical handling applications
• Body type: Fixed
• Head type: Rotary head
• Body material: (PBT+PC)-GF30 FR
• Head material: (PBT+PC)-GF30 FR
• Movement of operating head: Rotary
• Type of operator: Stay put crossed rods lever metal square rod 6 mm, L = 200 mm
• Type of approach: Lateral approach, 2 directions
• Number of poles: 4
• Contacts type and composition: 2 x (1 NC + 1 NO)
• Contact operation: Slow-break, break before make
• Switch actuation: By any moving part
• Terminal marking: (21-22)NC; (13-14)NO
• Electrical connection: Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
• Cable entry: 1 entry tapped and 2 breakout holes for M20 x 1.5 cable gland, cable outer diameter: 7...13 mm
• Positive opening: Without
• Minimum torque for tripping: 0.5 N.m
• Maximum actuation speed: 1.5 m/s actuation point on the rod between 65 and 95 mm
• Maximum displacement angle: -180 °; 180 °
• Contact rating: A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A; Q150, DC-13 (Ue = 125 V), Ie = 0.55 A conforming to IEC 60947-5-1 appendix A
• Rated insulation voltage [Ui]: 300 V conforming to UL 508; 300 V conforming to CSA C22.2 No 14; 500 V (pollution degree 3) conforming to IEC 60947-1
• Rated impulse withstand voltage [Uimp]: 6 KV conforming to IEC 60664; 6 kV conforming to IEC 60947-1
• Short-circuit protection: 10 A cartridge fuse, type gG
• Mechanical durability: 1000000 cycles
• Width: 200 mm
• Height: 200 mm
• Depth: 57 mm
• Net weight: 0.32 kg
• IP degree of protection: IP65 conforming to IEC 60529
• IK degree of protection: IK04 conforming to IEC 62262
• Operating temperature: -25...70 °C
• Storage temperature: -40...70 °C
• Certifications: CSA, CCC, UL, CE
• Standards: IEC 60947-5-1, CSA C22.2 No 14, UL 508
