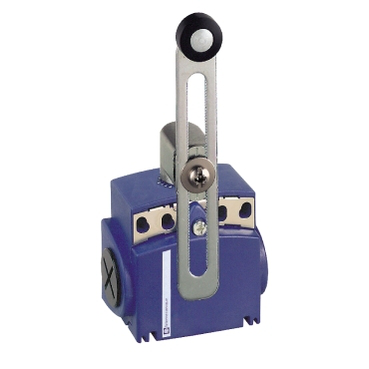

Telemecanique XCKT2145G11 Limit Switch Adjustable Roller Lever 1NC+1NO Pg11

The Telemecanique XCKT2145G11 is an XC Standard XCKT limit switch with a variable length thermoplastic roller lever. It has 1 NC + 1 NO contacts (snap action) and 2 entries tapped for Pg 11 cable gland. The NC contact has positive opening operation. Degree of protection: IP66 conforming to IEC 60529.

Technical specifications:

• Commercial reference: XCKT2145G11
• Manufacturer: Telemecanique Sensors
• EAN: 3389110319224
• Range: Telemecanique Limit switches XC Standard
• Series: Standard format
• Product type: Limit switch
• Device short name: XCKT
• Sensor design: Compact
• Body type: Fixed
• Head type: Rotary head
• Body material: Plastic
• Head material: Zamak
• Movement of operating head: Rotary
• Type of operator: Spring return roller lever thermoplastic variable length
• Type of approach: Lateral approach, 2 directions
• Number of poles: 2
• Contacts type and composition: 1 NC + 1 NO
• Contact operation: Snap action
• Switch actuation: By 30° cam
• Terminal marking: (13-14)NO; (21-22)NC
• Electrical connection: Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
• Cable entry: 2 entries tapped for Pg 11 cable gland
• Positive opening: With
• Positive opening minimum torque: 0.25 N.m
• Minimum torque for tripping: 0.1 N.m
• Maximum actuation speed: 1.5 m/s
• Repeat accuracy: 0.1 mm on the tripping points with 1 million operating cycles
• Contact rating: A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A; Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
• Rated insulation voltage [Ui]: 300 V conforming to UL 508; 500 V (pollution degree 3) conforming to IEC 60947-1; 300 V conforming to CSA C22.2 No 14
• Rated impulse withstand voltage [Uimp]: 6 KV conforming to IEC 60664; 6 kV conforming to IEC 60947-1
• Short-circuit protection: 10 A cartridge fuse, type gG
• Mechanical durability: 10000000 cycles
• Width: 58 mm
• Height: 51 mm
• Depth: 30 mm
• IP degree of protection: IP66 conforming to IEC 60529; IP67 conforming to IEC 60529
• IK degree of protection: IK04 conforming to IEC 62262
• Operating temperature: -25...70 °C
• Storage temperature: -40...70 °C
• Certifications: CCC, UL, CSA
• Standards: IEC 60204-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14
