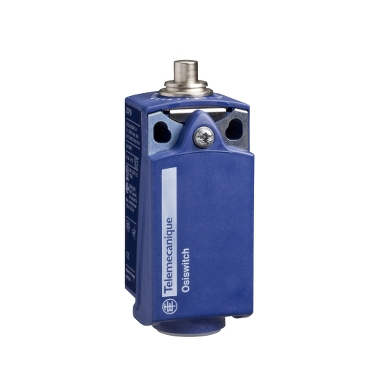

Telemecanique XCKP2110G11 Limit Switch 1NC+1NO Metal End Plunger Pg11

The Telemecanique XCKP2110G11 is an XC Standard limit switch with a metal spring return end plunger actuated on end, and one NC plus one NO snap action contact. It is a compact form B body to CENELEC EN 50047 with a Pg 11 cable entry. The NC contact has positive opening operation.

Technical specifications:

• Commercial reference: XCKP2110G11
• Manufacturer: Telemecanique
• EAN: 3389110316636
• Series / range: Telemecanique Limit switches XC Standard
• Product type: Limit switch
• Device short name: XCKP
• Sensor design: Compact form B conforming to CENELEC EN 50047
• Body type: Fixed
• Head type: Plunger head
• Type of operator: Spring return plunger metal
• Type of approach: Vertical approach, 1 direction
• Movement of operating head: Linear
• Number of poles: 2
• Contacts type and composition: 1 NC + 1 NO
• Contact operation: Snap action
• Switch actuation: On end
• Terminal designation: (13-14)NO; (21-22)NC
• Electrical connection: Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
• Cable entry: 1 entry tapped for Pg 11 cable gland
• Positive opening: With
• Positive opening minimum force: 45 N
• Minimum force for tripping: 15 N
• Maximum actuation speed: 0.5 m/s
• Contact rating code: A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A; Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
• Rated insulation voltage [Ui]: 300 V conforming to UL 508; 500 V (pollution degree 3) conforming to IEC 60947-1; 300 V conforming to CSA C22.2 No 14
• Rated impulse withstand voltage [Uimp]: 6 KV conforming to IEC 60664; 6 kV conforming to IEC 60947-1
• Short-circuit protection: 10 A cartridge fuse, type gG
• Mechanical durability: 15000000 cycles
• Body material: Plastic
• Head material: Zamak
• Width: 31 mm
• Height: 65 mm
• Depth: 30 mm
• IP degree of protection: IP66 conforming to IEC 60529; IP67 conforming to IEC 60529
• IK degree of protection: IK04 conforming to IEC 62262
• Ambient air temperature for operation: -25...70 °C
• Ambient air temperature for storage: -40...70 °C
• Standards: IEC 60947-5-1; CSA C22.2 No 14; IEC 60204-1; UL 508

Features and benefits:

• Positive opening NC contact suitable for safety interlock duty
• End plunger actuation for straight line approach in a tight footprint
• Metal plunger head resists wear from repeated actuation
• EN 50047 compact form B footprint for standardised mounting
• Repeat accuracy of 0.1 mm over 1 million operating cycles

Applications:

• Direct end of travel stops where the actuator approaches head on
• Pallet and workpiece presence detection on transfer lines
• Machine slide and cylinder end position confirmation

Also known as: Telemecanique XCKP2110G11, XCKP2110G11 OsiSense XC limit switch, XCKP end plunger switch.
