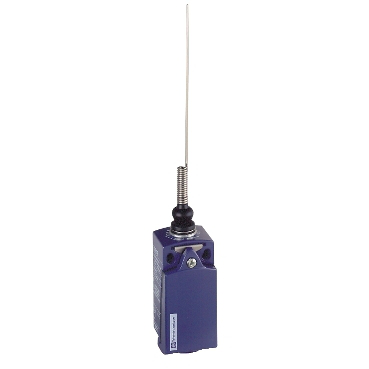

Telemecanique XCKD2106N12 Limit Switch Cat's Whisker 1NC+1NO Snap 1/2in NPT

The Telemecanique XCKD2106N12 is an XC Standard XCKD limit switch with a cat's whisker. It has 1 NC + 1 NO contacts (snap action) and 1 entry tapped for 1/2" NPT cable gland.

Technical specifications:

• Commercial reference: XCKD2106N12
• Manufacturer: Telemecanique Sensors
• EAN: 3389110305289
• Range: Telemecanique Limit switches XC Standard
• Series: Standard format
• Product type: Limit switch
• Device short name: XCKD
• Sensor design: Compact
• Body type: Fixed
• Head type: Multi-directional head
• Body material: Zamak
• Head material: Zamak
• Movement of operating head: Multi-directional
• Type of operator: Spring return cat's whisker
• Type of approach: Multi-directional approach
• Number of poles: 2
• Contacts type and composition: 1 NC + 1 NO
• Contact operation: Snap action
• Switch actuation: By any moving part
• Electrical connection: Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
• Cable entry: 1 entry tapped for 1/2" NPT cable gland
• Positive opening: Without
• Minimum torque for tripping: 0.13 N.m
• Maximum actuation speed: 1 m/s
• Contact rating: A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A; Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A
• Rated insulation voltage [Ui]: 300 V conforming to UL 508; 500 V (pollution degree 3) conforming to IEC 60947-1; 300 V conforming to CSA C22.2 No 14
• Rated impulse withstand voltage [Uimp]: 6 KV conforming to IEC 60664; 6 kV conforming to IEC 60947-1
• Short-circuit protection: 10 A cartridge fuse, type gG
• Mechanical durability: 5000000 cycles
• IK degree of protection: IK06 conforming to EN 50102
• Operating temperature: -25...70 °C
• Storage temperature: -40...70 °C
• Certifications: UL, CSA, CCC
• Standards: EN 60947-5-1, UL 508, IEC 60204-1, EN 60204-1, CSA C22.2 No 14, IEC 60947-5-1
