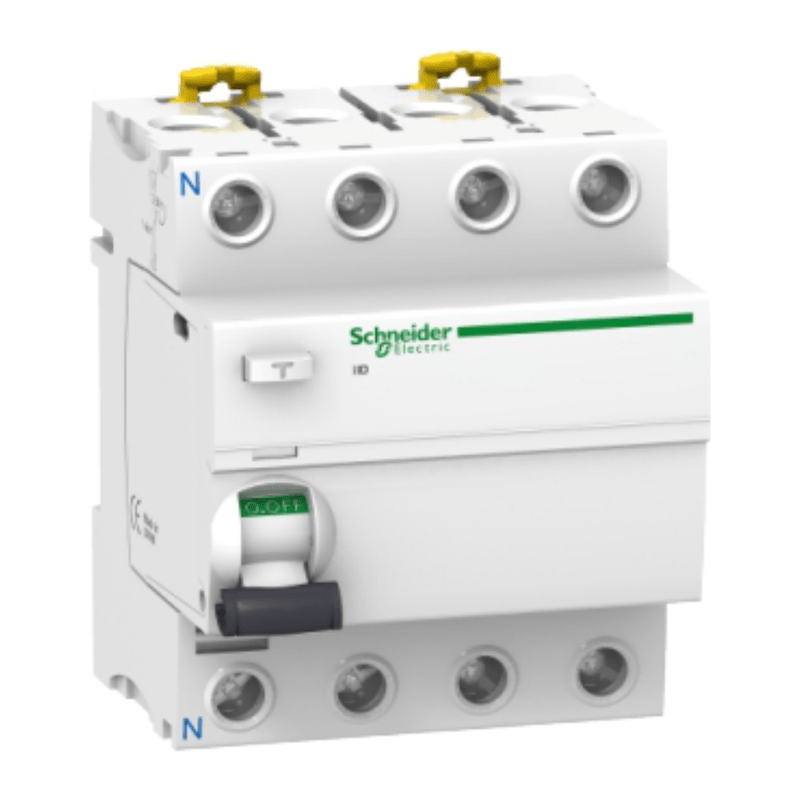

Schneider A9R41463 Acti9 iID RCCB 4P 63A 30mA Type AC

The Schneider Electric A9R41463 is an Acti9 iID residual current circuit breaker (RCCB) with 4 poles, rated 63 A with 30 mA sensitivity and Type AC tripping class. It provides earth-leakage protection for final distribution circuits and mounts on 35 mm DIN rail.

Technical specifications:

• Commercial reference: A9R41463
• Manufacturer: Schneider Electric
• Range: Acti 9
• Product name: Acti 9 iID
• Product type: Residual current circuit breaker (RCCB)
• Device short name: iID
• Number of poles: 4P
• Neutral position: Left
• Rated current [In]: 63 A
• Network type: AC
• Residual current sensitivity: 30 mA
• Residual current tripping class: Type AC
• Tripping delay: Instantaneous
• Rated voltage [Ue]: 380...415 V AC 50/60 Hz
• Network frequency: 50/60 Hz
• Making and breaking capacity: Idm 1500 A / Im 1500 A
• Rated conditional short-circuit current: 10 kA
• Rated insulation voltage [Ui]: 500 V AC 50/60 Hz
• Rated impulse withstand voltage [Uimp]: 6 kV
• Surge current: 250 A
• Contact position indicator: Yes
• Control type: Toggle
• Mounting: Clip-on, 35 mm DIN rail
• Width in 9 mm modules: 8
• Dimensions (H x W x D): 91 x 72 x 73.5 mm
• Degree of protection: IP20 conforming to IEC 60529
• Standards: EN/IEC 61008-1

Features and benefits:

• Type AC sensing for residual sinusoidal AC earth-leakage currents
• 30 mA sensitivity suitable for additional protection against direct contact
• Contact position indicator gives clear confirmation of the switch state
• Clip-on DIN rail mounting for quick installation in consumer units and distribution boards

Applications:

• Earth-leakage protection of final circuits in commercial and residential distribution boards
• Protection of three-phase circuits requiring 30 mA additional protection
• Retrofit of existing Acti9 assemblies

Also known as: Schneider Electric A9R41463.
