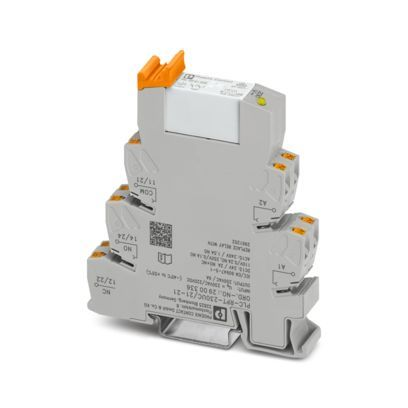

Phoenix Contact 2900336 PLC-RPT-230UC/21-21Relay module

The Phoenix Contact PLC-RPT-230UC/21-21 (2900336) is a PLC-INTERFACE relay module comprising a PLC-BPT.../21-21 basic terminal block with Push-in connection and a plug-in miniature relay with power contact. It mounts on an NS 35/7.5 DIN rail and is designed for universal application at 100% operating factor, providing safe isolation between coil and contact side with an integrated input circuit and interference suppression circuit.

• Nominal input voltage: 230 V AC / 220 V DC
• Input voltage range: 179.4–264.5 V AC / 171.6–264 V DC (at 20 °C)
• Contact configuration: 2 changeover contacts (single contact); AgNi contact material
• Maximum switching voltage: 250 V AC/DC
• Minimum switching voltage: 5 V AC/DC (at 10 mA)
• Limiting continuous current: 6 A; maximum inrush current 15 A (300 ms)
• Switching capacity: 1500 VA (250 V AC); 140 W (24 V DC); 85 W (48 V DC); 44 W (110 V DC); 60 W (220 V DC)
• Drive: Monostable, polarised; typical response time 7 ms, typical release time 10 ms
• Protective circuit: Bridge rectifier
• Overvoltage category: III; pollution degree 3; rated surge voltage 6 kV
• Maximum power dissipation: 0.99 W (nominal condition)
• Operating voltage display: Yellow LED
• Mechanical service life: 3 × 10⁷ cycles
• Connection: Push-in connection; stripping length 10 mm; conductor cross-section 0.14–2.5 mm² (rigid)
