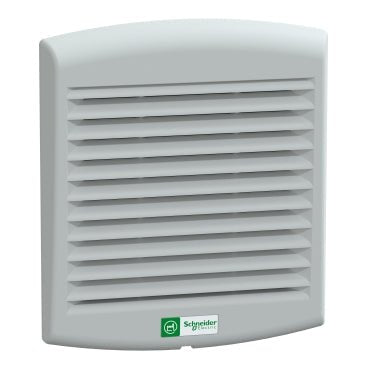

Schneider NSYCVF85M230PF ClimaSys Forced Vent. IP54, 85m3/h, 230V, with Outlet G

The Schneider Electric NSYCVF85M230PF is a ClimaSys CV forced ventilation fan with IP54 protection, designed to cool electrical enclosures. Operating at 230V 50/60Hz, it delivers a free-flow rate of 85 m³/h at 50Hz and 98 m³/h at 60Hz, with an integrated G2 filter and outlet grille.

Technical specifications:

• Commercial reference: NSYCVF85M230PF
• Manufacturer: Schneider Electric
• EAN:
• Series / range: ClimaSys CV
• Product type: Axial ventilation fan
• Filter type: Standard (G2)
• Flow rate: 85 m³/h at 50Hz / 98 m³/h at 60Hz (free flow with standard filter)
• Supply voltage: 230V 50/60Hz (175...253V rated voltage range)
• Absorbed power: 17W at 50Hz / 15W at 60Hz
• Rated current: 0.121A at 50Hz / 0.097A at 60Hz
• Noise level: 46...49 dB
• Bearing type: Ball bearing
• External dimensions (HxWxD): 170 x 150 x 62 mm
• Cutout dimensions: 125 x 125 mm
• Weight: 0.78 kg
• Outlet grille material: Injection-moulded thermoplastic (ASA PC)
• Colour: Grey (RAL 7035)
• IP protection rating: IP54
• Operating temperature: -20...60 °C
• Storage temperature: -40...70 °C
• Maximum back pressure: 50 Pa at 0 m³/h
• Connection type: Faston connector
• Warranty: 18 months

Features and benefits:

• IP54 protection rating guards against dust and water ingress in demanding environments
• Integrated G2 standard filter prevents contamination of enclosure internals
• Ball bearing motor construction ensures reliable, long-service operation
• Wide voltage tolerance (175...253V) provides compatibility across European supply networks
• Supplied complete with outlet grille, front filter, mounting template, and power cable
• Compatible with ProClima software for accurate operating point and flow rate calculation

Applications:

• Thermal management of industrial control and automation enclosures
• Ventilation of electrical distribution panels and switchgear cabinets
• Cooling of enclosures in manufacturing, process, and building automation installations
• Use in enclosures located in relatively clean indoor industrial environments

Part of the Schneider Electric ClimaSys range of enclosure climate control solutions.
