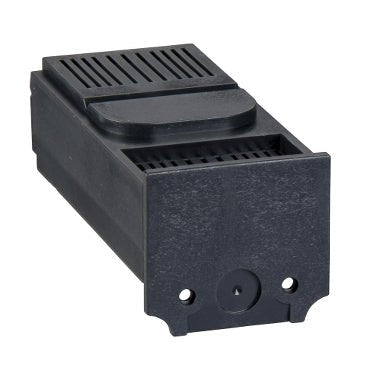

Schneider LV438320 Terminal shields, ComPact NSX100/160/250 DC, 1P, 2 Pieces

Schneider Electric LV438320 is a set of 2 terminal shields designed for 1-pole (1P) ComPact NSX DC circuit breakers, covering the NSX100, NSX160, and NSX250 DC ranges. These short-form terminal covers provide IP40 protection on both upper and lower connection points, safeguarding exposed terminals in DC switchgear installations.

Technical specifications:

• Commercial reference: LV438320
• Manufacturer: Schneider Electric
• EAN:
• Series / range: ComPact NSX DC (NSX100 DC, NSX160 DC, NSX250 DC)
• Product type: Terminal shield / terminal cover
• Accessory type: Installation accessory
• Number of poles: 1P
• Quantity per set: 2 pieces
• Terminal position: Upper and lower
• Cover form: Short
• IP protection rating: IP40 conforming to IEC 60529
• Package weight (unit): 38.0 g
• Package dimensions (unit): 11.5 x 11.2 x 3.0 cm (L x W x H)
• Warranty: 18 months

Features and benefits:

• Provides IP40 protection rating per IEC 60529, reducing the risk of accidental contact with live terminals
• Compatible with ComPact NSX100 DC, NSX160 DC, and NSX250 DC circuit breakers in both legacy and new-generation ranges
• Short-form design suits space-constrained enclosures where a full-length cover is not required
• Sold as a set of 2 covers, suitable for a single 1P breaker installation with both top and bottom terminal positions covered
• Simple installation accessory requiring no special tools, reducing panel assembly time

Applications:

• DC switchgear panels using ComPact NSX100/160/250 DC circuit breakers requiring terminal protection
• Industrial control cabinets where exposed breaker terminals must meet IP40 requirements
• Photovoltaic and battery storage systems using DC-rated NSX breakers
• Marine or transport applications where DC distribution protection accessories are needed

Compliant with IEC 60529 (IP40 terminal protection). Part of the Schneider Electric ComPact NSX DC accessory range.

Also known as: Schneider LV438320, Schneider Electric LV438320, NSX DC terminal cover, ComPact NSX terminal shield.
