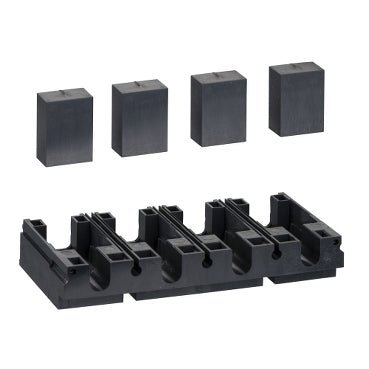

Schneider LV429307 Connection Adapter for Plug in Base, ComPact NSX 100/160/250,

The Schneider Electric LV429307 is a 4-pole connection adapter for plug-in base mounting, designed for use with the ComPact NSX100, NSX160, and NSX250 molded-case circuit breaker range. It allows NSX circuit breakers rated up to 250 A to be fitted into plug-in bases, and covers both standard AC and DC variants of the series. Supplied as a single unit, it is a purpose-built connection accessory for the ComPact NSX system.

Technical specifications:

• Commercial reference: LV429307
• Manufacturer: Schneider Electric
• EAN:
• Series / range: ComPact NSX
• Product type: Connection adapter
• Accessory category: Connection accessory
• Number of poles: 4P
• Mounting: Plug-in
• Rated current: 250 A
• Compatible with: ComPact NSX100, NSX160, NSX250 (AC and DC variants)
• Package dimensions: 20 x 14 x 3.5 cm (L x W x H)
• Package weight: 106 g
• Warranty: 18 months

Features and benefits:

• Enables plug-in installation of ComPact NSX100, NSX160, and NSX250 circuit breakers
• 4-pole design covering a wide range of distribution configurations
• Compatible with both AC and DC variants of the ComPact NSX series
• Mercury-free construction
• Supplied as a complete single unit, ready for installation

Applications:

• Plug-in mounting of NSX100, NSX160, and NSX250 circuit breakers in industrial distribution boards
• Replacement or reconfiguration of circuit breakers in existing plug-in base installations
• Industrial and commercial power distribution panels built around the ComPact NSX platform
• DC distribution systems using NSX100 DC, NSX160 DC, or NSX250 DC variants

Part of the Schneider Electric ComPact NSX accessory range.

Also known as: Schneider LV429307, Schneider Electric LV429307, NSX plug-in adapter, ComPact NSX connection adapter.
