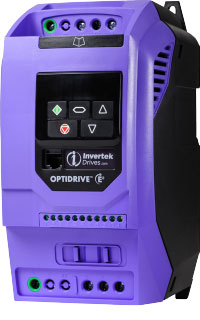

Invertek ODE-3-240058-3F42 Optidrive E3 VFD 2.2kW 3Ph 400V 5.8A IP20

The Invertek Optidrive E3 ODE-3-240058-3F42 is a 2.2 kW (3 HP) variable frequency drive for controlling the speed of three-phase AC induction and permanent magnet motors. It takes a 380-480 V three-phase supply and delivers a three-phase output up to 5.8 A through a built-in EMC filter, in an IP20 enclosure designed for quick installation and commissioning.

Technical specifications:

• Model: Optidrive E3 ODE-3-240058-3F42
• Invertek code: ODE-3-240058-3F42
• Motor power: 2.2 kW (3 HP)
• Rated output current: 5.8 A
• Continuous supply current: 7.5 A
• Supply voltage: 380-480 V, three-phase
• Output voltage: 0 to supply voltage, 3-phase
• Frame size: 2
• Enclosure rating: IP20
• Display: LED
• Dimensions (H x W x D): 221 mm x 110 mm x 150 mm
• Weight: 1.7 kg
• Internal EMC filter: Yes
• Internal brake transistor: Yes
• Recommended supply fuse / MCB (Type B): 16 A
• Max supply cable: 8 mm²
• Max motor cable: 8 mm²
• Max motor cable length: 100 m
• Mounting fixings: 4 x M5

Features and benefits:

• Fast commissioning with a small parameter set gets the drive running in minutes.
• Built-in EMC filter reduces conducted emissions and helps meet EMC requirements without external components.
• Integrated brake transistor allows an external braking resistor to be added for demanding stop and reversing duty.
• IP20 format suits panel and machinery installations.
• Controls three-phase induction and permanent magnet motors for pumps, fans, conveyors and general machinery.

Applications:

• Variable speed control of pumps and fans for energy savings in HVAC and process systems.
• Conveyor, mixer and general machinery motor control in industrial and commercial installations.
• Retrofitting speed control onto existing three-phase motor loads.

Also known as: Invertek ODE-3-240058-3F42, Optidrive E3 2.2kW, ODE3 2.2kW 400V drive, Invertek 3 HP VFD.
