HL36P03 36-Module 8-Way Pre-Wired 3-Phase Distribution Board 40A 30mA RCD IP30

The HL36P03 is a prefabricated, pre-wired and tested 36-module distribution board, supplied ready to connect. It pairs a Hager Volta flush IP30 enclosure with Legrand RX³ protective devices: a 4-pole 40A 30mA Type A RCD feeding 8 single-pole B16 circuits. Built for three-phase 230/400V installations in homes, apartments and light commercial premises, it arrives with busbar, neutral and earth bars and internal wiring already done, leaving 24 spare ways for future circuits.

Technical specifications

• Part number: HL36P03

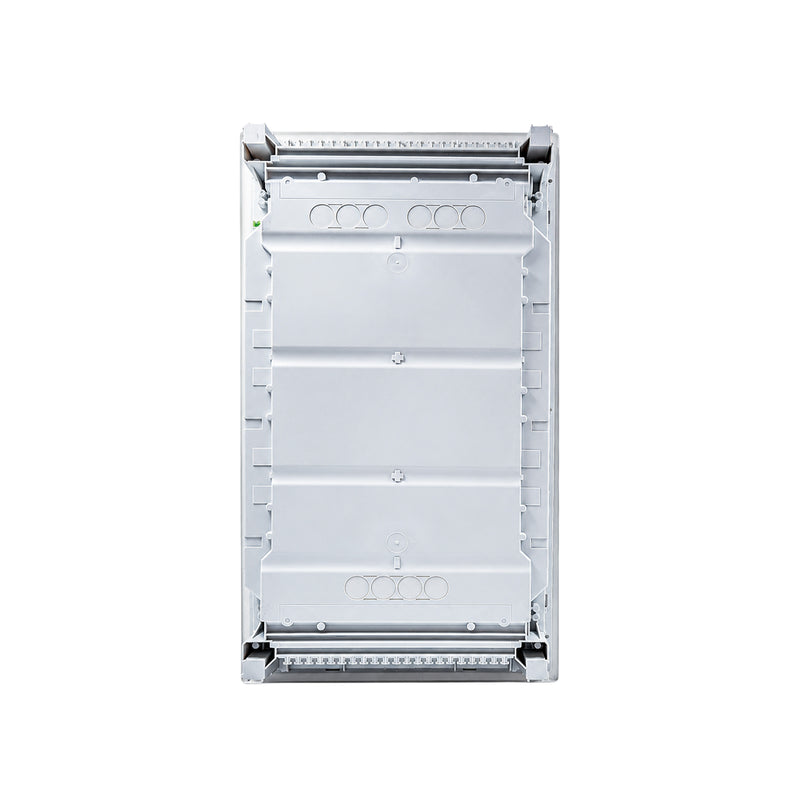

• Enclosure: Hager Volta VU36NC, flush (recessed) wall mounting
• Module capacity: 36 (3 rows of 12 x 18mm)
• Protection rating: IP30
• Dimensions (approx.): 630 x 348 x 98 mm (H x W x D)
• Door: white hinged steel door with quarter-turn latch and technical-data label
• Main protection: Legrand RX³ 402075 RCCB, 4-pole, 40A, 30mA, Type A, 400V
• Outgoing protection: 8 x Legrand RX³ 419136 MCB, 1-pole, B16, 6kA, 230V
• Modules used: 12 of 36 (24 spare ways for future circuits)
• Internal wiring: 10 mm² H07V-K with insulated ferrules; Hager KDN363A 3-phase, 12-module busbar comb
• Distribution bars: separate neutral (blue) and protective earth (green/yellow) terminal bars
• Supply: three-phase, 230/400V AC, 50Hz

Features and benefits

• Prefabricated, pre-wired and tested: no internal assembly, busbar cutting or comb wiring on site
• Type A RCD trips on both AC and pulsating DC residual currents, covering circuits with electronic loads that a Type AC device would miss
• 30 mA sensitivity adds protection against electric shock
• B16 curve breakers suit general lighting and socket circuits with low inrush
• 24 spare module ways for adding circuits later
• Flush enclosure finishes level with the wall surface
• Branded protection throughout: Hager Volta enclosure, Legrand RX³ devices

Applications

• New three-phase consumer units in houses and apartments
• Renovation and rewiring projects
• Light commercial and office sub-distribution
• Replacement of older fuse boards

Built from components compliant with IEC 61008-1 (RCD) and IEC 60898-1 (MCBs); enclosure to DIN 43870, IP30 per IEC 60529.
