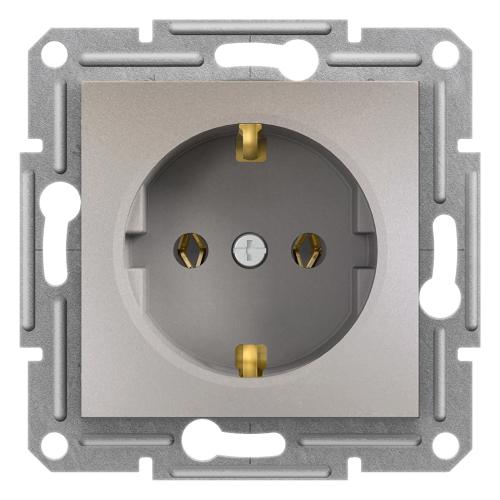

Schneider EPH2900169 Asfora Single Socket Outlet with Side Earth, WO Frame, Bron

The Schneider Electric EPH2900169 is a single socket outlet with side earth, frameless, in a bronze finish, from the Asfora series. Designed for flush mounting, it delivers reliable power delivery at up to 16 A / 250 V AC, supporting loads up to 3680 W in residential and light commercial installations.

Technical specifications:

• Commercial reference: EPH2900169
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Asfora
• Product type: Socket outlet
• Number of outlets: 1
• Pole configuration: 2P + E
• Outlet standard: CEE 7/3 (Schuko), side earth
• Rated current: 16 A
• Rated voltage: 250 V AC
• Power range: 3680 W
• IP protection rating: IP20
• Width: 71 mm
• Height: 71 mm
• Depth: 42 mm
• Design depth: 10 mm
• Product weight: 0.068 kg
• Material: ABS + PC (central plate)
• Conductor material: Copper
• Connection type: Screw terminals
• Cable capacity: 2 x 2.5 mm² (flexible, rigid, single-wire or multi-wire)
• Strip length: 13.0 mm
• Mounting: Flush, screw or clip fixing (51-69 mm)
• Finish: Painted, bronze shade
• Packaging: Bag packaging
• Standards: IEC 60884-1
• Certifications: TSE, VDE

Features and benefits:

• Frameless design for a clean, minimalist installation without a separate mounting frame
• Side earth (Schuko CEE 7/3) configuration for safe and reliable grounding
• Screw terminal connections accept up to 2 x 2.5 mm² cables, both flexible and rigid
• Compact flush-mount profile with only 10 mm design depth
• Bronze finish for aesthetic coordination with premium interior decor schemes
• Compliant with IEC 60884-1 and certified by TSE and VDE

Applications:

• Residential rooms requiring a single power outlet with side-earth grounding
• Interior renovation projects where a frameless socket is preferred for a flush wall finish
• Hospitality and premium residential environments where a bronze finish matches the decor
• Light commercial spaces requiring a compact flush-mounted socket solution

Compliant with IEC 60884-1. Part of the Schneider Electric Asfora series.

Also known as: Schneider EPH2900169, Schneider Electric EPH2900169, Asfora single socket outlet, Schuko flush socket bronze.
