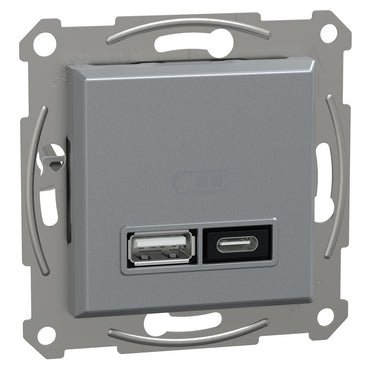

Schneider EPH2700562 Asfora Double USB Charger type A+C 21W, Steel

The Schneider Electric EPH2700562 is a double USB charger from the Asfora range, designed as a flush-mounted wall mechanism with mounting frame in steel color. It features both USB Type A and USB Type C outputs with a combined rated output power of 21W, making it a compact and versatile charging solution for modern devices.

Technical specifications:

• Commercial reference: EPH2700562
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Asfora
• Product type: USB charger
• Device presentation: Mechanism with mounting frame
• Mounting: Flush-mounted
• USB outputs: Type A + Type C
• Rated output power: 21W
• Rated input voltage: 220...240 V AC +/- 10% at 50/60 Hz
• USB Type A output: 5 V DC, max current 2.4 A
• USB Type C output: up to 20 V DC, max current 3 A
• Total output current: 3 A
• Load type: Power Delivery
• No-load power consumption: 0.05 W
• Connection capacity: 2 x 0.75...2 x 2.5 mm² (solid, flexible, and stranded cables)
• Wire strip length: 8 mm
• Number of screw terminals: 2
• Protection type: Overload and short-circuit, output overvoltage, thermal protection
• Electrical insulation class: Class II
• IK rating: IK02
• Operating temperature: 0...40 °C
• Storage temperature: -5...50 °C
• Dimensions (HxWxD): 71 x 71 x 42 mm, installation depth 32 mm
• Weight: 0.13 kg
• Material: ABS central plate, PC GF10 FR housing
• Service life: 30,000 hours
• Standard: ETSI EN 301 489-4

Features and benefits:

• Simultaneous charging via USB Type A and USB Type C outputs from a single flush-mounted mechanism
• Power Delivery support on the USB Type C port, delivering up to 21W for fast charging of compatible devices
• Class II insulation provides double insulation without the need for a protective earth connection
• Built-in overload, short-circuit, overvoltage, and thermal protection on outputs
• Glossy steel-finish frame integrates seamlessly with the Asfora decorative range
• Screw-type terminals accept a wide range of cable cross-sections for flexible installation

Applications:

• Residential rooms requiring convenient USB charging points at wall outlets
• Hotel rooms and hospitality environments for guest device charging
• Office workstations and meeting rooms for charging smartphones, tablets, and laptops
• Retail and public spaces where compact, integrated USB charging is needed

Compliant with ETSI EN 301 489-4. Part of the Schneider Electric Asfora range.

Also known as: Schneider EPH2700562, Schneider Electric EPH2700562, Asfora USB wall charger, dual USB flush-mount charger.
