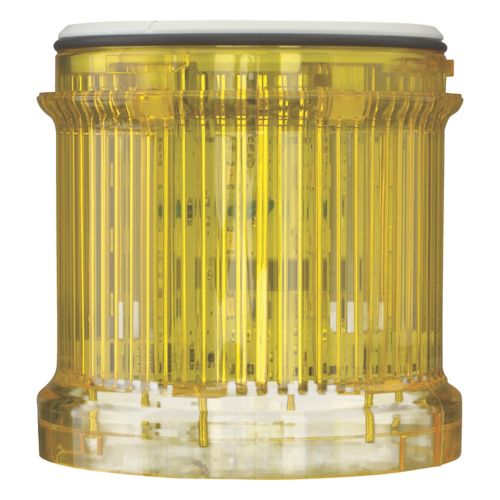

Eaton 171465 SL7-L24-Y Continuous Light Module Yellow LED 24V AC/DC

The Eaton SL7-L24-Y is a continuous light module from the Moeller series SL7 signal tower range, providing steady yellow LED indication at 24 V AC/DC. With a 360° radiation angle and an LED lifespan of 100,000 h, it is engineered for reliable long-term industrial signalling. Its IP66 and NEMA 4 rated black polycarbonate housing ensures consistent performance in demanding environments.

Technical specifications:

• Model code: SL7-L24-Y
• Catalog number: 171465
• Manufacturer: Eaton
• EAN: 4015081677924
• Product type: Continuous light module
• Color: Yellow
• Lamp type: LED
• Voltage type: AC/DC
• Rated operational voltage: 24 V AC/DC
• Current consumption: 50 mA at 24 V AC/DC
• Leakage current: 0.003 A
• Rated insulation voltage (Ui): 250 V
• Rated impulse withstand voltage (Uimp): 4000 V AC
• Overvoltage category: III
• Pollution degree: 3
• Degree of protection: IP66, NEMA 4
• Radiation angle: 360°
• LED lifespan: 100,000 h
• Ambient operating temperature: -30 °C to 60 °C
• Shock resistance: 15 g, sinusoidal shock 11 ms per IEC/EN 60068-2-27
• Outside diameter: Ø 73 mm
• Dimensions (L x H x W): 73 x 73 x 73 mm
• Weight: 0.08 kg
• Enclosure color: Black
• Material: Polycarbonate (PC) enclosure and cap
• Mounting position: As required
• Max. modules: 5 (standard base), 10 (base for mounting on both sides)
• Connection to SmartWire-DT: No
• Certifications: IEC/EN 60947-5-1, IEC/EN 60529, UL 508, CSA-C22.2 No. 94-91, CE

Features and benefits:

• LED lifespan of 100,000 h reduces maintenance intervals and replacement costs
• IP66 and NEMA 4 rating protects against dust ingress and high-pressure water jets
• Full 360° radiation angle ensures visibility from every direction around the tower
• Wide operating temperature range of -30 °C to 60 °C suits indoor and outdoor industrial installations
• Modular stacking supports up to 5 or 10 elements for multi-condition signalling configurations
• Polycarbonate enclosure and cap provide high impact resistance and chemical durability

Applications:

• Machine operational status indication on manufacturing and assembly lines
• Process equipment run, fault, or standby signalling at control stations
• Safety and alarm status displays in industrial control cabinets
• Conveyor systems and automated machinery condition monitoring
• Signalling in harsh or wet environments such as food processing or outdoor plant areas

Compliant with IEC/EN 60947-5-1, IEC/EN 60529, UL 508, and CSA-C22.2 No. 14-10. Part of the Eaton Moeller series SL7 modular signal tower system.
