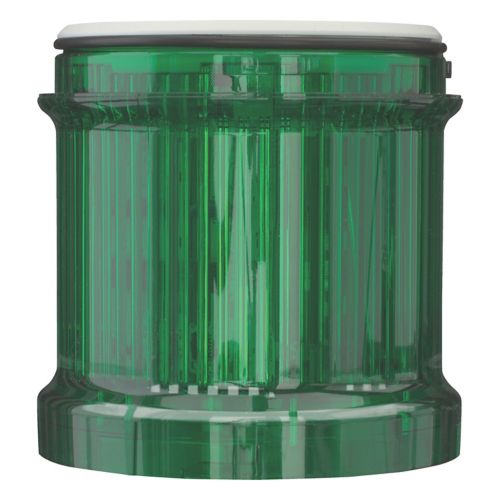

Eaton 171462 SL7-L24-G Continuous Light Module Green LED 24V AC/DC

The Eaton SL7-L24-G is a green LED continuous light module in the Moeller series SL7 signal tower range, delivering 360° steady illumination at 24 V AC/DC with IP66/NEMA 4X protection and a 100,000 h LED lifespan.

Technical specifications:

• Model code: SL7-L24-G
• Catalog number: 171462
• Manufacturer: Eaton
• EAN: 4015081677900
• Type: Continuous light module
• Category: SL signal towers
• Color: Green
• Lamp type: LED
• Rated voltage: 24 V AC/DC
• Current consumption: 50 mA at 24 V AC/DC
• Electrical lifespan: 100,000 h
• Radiation angle: 360°
• Degree of protection: IP66, NEMA 4X
• Overvoltage category: III
• Pollution degree: 3
• Rated impulse withstand voltage (Uimp): 4,000 V AC
• Rated insulation voltage (Ui): 250 V
• Leakage current: 3 mA
• Ambient operating temperature: -30 °C to +60 °C
• Dimensions: 73 x 73 x 73 mm (W x H x D)
• Outside diameter: Ø 73 mm
• Weight: 0.08 kg
• Material: Polycarbonate (PC)
• Enclosure color: Black
• Mounting position: As required
• Max. modules: 5 (standard base), 10 (double-sided base)
• Shock resistance: 15 g, sinusoidal 11 ms (IEC/EN 60068-2-27)
• Climatic proofing: Damp heat cyclic (IEC 60068-2-30), constant (IEC 60068-2-78)
• SmartWire-DT: No
• Certifications: CE, UL (File No. E29184), CSA, IEC/EN 60947-5-1, IEC/EN 60529, UL 508

Features and benefits:

• 100,000 h LED lifespan cuts maintenance and replacement needs
• IP66 and NEMA 4X ratings for wet, dusty, and washdown locations
• Full 360° radiation angle delivers all-round visibility on the factory floor
• Stacks up to 10 modules for multi-status tower configurations

Applications:

• Machine and process status indication on industrial equipment
• Production line monitoring in manufacturing facilities
• Visual alarms in control panels and automation systems
• Food processing and washdown areas requiring IP66 enclosures

Compliant with IEC/EN 60947-5-1, IEC/EN 60529, UL 508, CSA-C22.2 No. 14-10, and CSA-C22.2 No. 94-91. Part of the Eaton Moeller series SL7 modular signal tower system.
