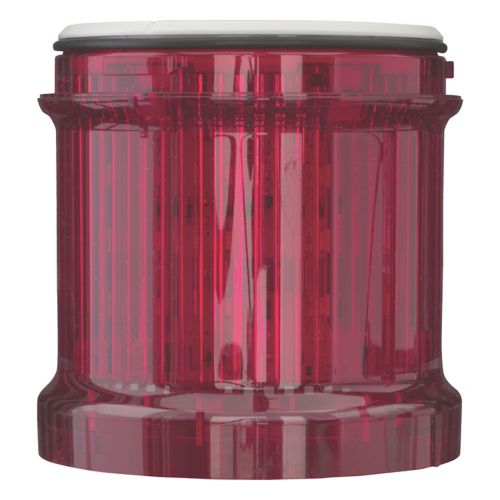

Eaton 171441 SL7-BL24-R Flashing Light Module Red LED 24V AC/DC

The Eaton SL7-BL24-R is a red LED flashing light module from the Moeller series SL7 signal tower system, providing 2 Hz visual alarm indication at 24 V AC/DC. With a 360° radiation angle, IP66 and NEMA 4 protection, and a rated electrical lifespan of 100,000 h, it is built for continuous operation in demanding industrial environments. The modular polycarbonate housing integrates directly into SL7 signal tower stacks for multi-colour status signalling.

Technical specifications:

• Model code: SL7-BL24-R
• Catalog number: 171441
• Manufacturer: Eaton
• EAN: 4015081677719
• Product type: Flashing light module
• Product category: SL signal towers
• Color: Red
• Lamp type: LED
• Light type: Flashing light
• Rated operational voltage: 24 V AC/DC
• Current consumption: 50 mA at 24 V AC/DC
• Flashing frequency: 2 Hz
• Lifespan, electrical: 100,000 h
• Radiation angle: 360°
• Degree of protection: IP66, NEMA 4
• Pollution degree: 3
• Overvoltage category: III
• Rated impulse withstand voltage (Uimp): 4,000 V AC
• Rated insulation voltage (Ui): 250 V
• Leakage current: 0.003 A
• Ambient operating temperature: -30 °C to +60 °C
• Dimensions (H x W x D): 73 mm x 73 mm x 73 mm
• Outside diameter: 73 mm
• Weight: 0.08 kg
• Material: Polycarbonate (PC) enclosure and cap
• Enclosure color: Black
• Mounting position: As required
• Max. modules with standard base: 5
• Max. modules with dual-side base: 10
• Shock resistance: 15 g, sinusoidal shock 11 ms, per IEC/EN 60068-2-27
• Climatic proofing: Damp heat constant (IEC 60068-2-78), damp heat cyclic (IEC 60068-2-30)
• Connection to SmartWire-DT: No

Features and benefits:

• LED technology rated at 100,000 h reduces replacement frequency and lowers maintenance costs
• IP66 and NEMA 4 polycarbonate housing withstands dust ingress, powerful water jets, and corrosive atmospheres
• 360° radiation angle delivers all-round visibility without repositioning the tower
• AC/DC compatibility at 24 V simplifies integration with diverse PLC and control system power supplies
• Modular stacking of up to 10 units supports flexible multi-colour signal tower configurations

Applications:

• Machine status and alarm signalling on manufacturing and assembly lines
• Fault and warning indication on industrial control panels and PLC cabinets
• Process monitoring in chemical, food processing, and packaging environments
• Warning beacons in warehousing, logistics centres, and outdoor installations

Compliant with IEC/EN 60947-5-1, IEC/EN 60529, UL 508, CSA-C22.2 No. 14-10, and CSA-C22.2 No. 94-91. Part of the Eaton Moeller series SL7 modular signal tower system.
