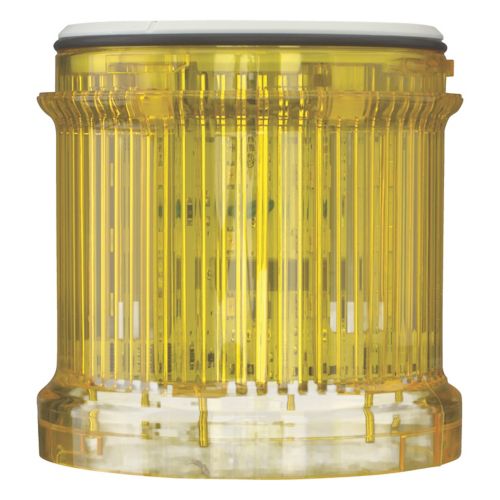

Eaton 171388 SL7-BL24-Y Flashing Light Module Amber LED 24V AC/DC

The SL7-BL24-Y is an Eaton Moeller series SL7 flashing light module for signal towers, emitting a yellow LED light at 2 Hz on a 24 V AC/DC supply. Rated IP66 and NEMA 13 with a 100,000 h LED lifespan and 360° radiation angle, it provides reliable visual signaling in demanding industrial environments.

Technical specifications:

• Model code: SL7-BL24-Y
• Catalog number: 171388
• Manufacturer: Eaton
• EAN: 4015081679232
• Product type: Flashing light module
• Product category: SL signal towers
• Color: Yellow
• Lamp type: LED
• Rated operational voltage: 24 V AC/DC
• Current consumption: 50 mA at 24 V AC/DC
• Flashing frequency: 2 Hz
• Electrical lifespan: 100,000 h
• Radiation angle: 360°
• Degree of protection: IP66, NEMA 13
• Overvoltage category: III
• Pollution degree: 3
• Rated impulse withstand voltage (Uimp): 4,000 V AC
• Rated insulation voltage (Ui): 250 V
• Leakage current: 3 mA
• Ambient operating temperature: -30 °C to 60 °C
• Outside diameter: Ø 73 mm
• Dimensions (L x H x W): 73 x 73 x 73 mm
• Weight: 0.08 kg
• Material: Polycarbonate (PC) cap and enclosure
• Enclosure color: Black
• Max. modules per tower: 5 (standard base), 10 (dual-side mounting base)
• Shock resistance: 15 g sinusoidal, 11 ms, per IEC/EN 60068-2-27
• Climatic proofing: Damp heat constant (IEC 60068-2-78), damp heat cyclic (IEC 60068-2-30)
• Connection to SmartWire-DT: No

Features and benefits:

• 360° radiation angle delivers all-round visibility without repositioning the tower
• IP66 and NEMA 13 rating protects against dust ingress and direct water jets
• 100,000 h LED lifespan reduces maintenance intervals and replacement costs
• Wide operating range of -30 °C to 60 °C suits outdoor enclosures and harsh indoor installations
• 15 g shock resistance per IEC/EN 60068-2-27 ensures reliable operation in high-vibration machinery

Applications:

• Machine status indication and fault warning on production lines
• Process control and automation panels requiring visual alarms
• Industrial control cabinets and switchgear assemblies
• Warehouse and logistics equipment status signaling

Compliant with IEC/EN 60947-5-1, IEC/EN 60529, UL 508, and CSA-C22.2 No. 14-10. Part of the Eaton Moeller SL7 signal tower range, compatible with SL7 bases and up to 10 stacked modules.
