Schneider EPH2900262 Asfora Single Socket Outlet with Side Earth, with Shutters,

Doprava zdarma

Získejte dopravu zdarma při objednávce nad 300 €!

Původní cena €2,68 - Původní cena €2,68
Původní cena
€2,68
€2,68 - €2,68
Momentální cena €2,68

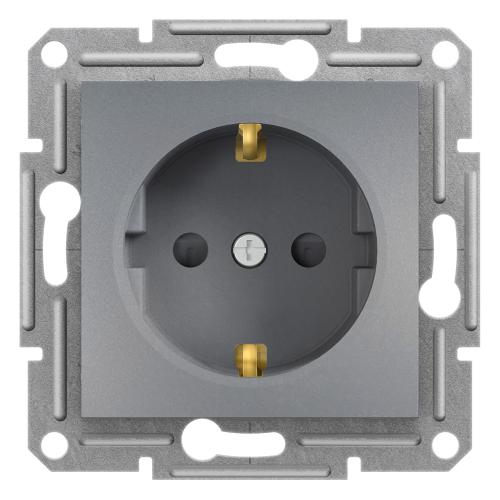

The Schneider Electric EPH2900262 is a single socket outlet from the Asfora series, designed for flush-mount installation with side earth (Schuko standard CEE 7/3) and integrated shutters for child safety. Rated at 16 A / 250 V AC with a power range of 3680 W, it is supplied without a frame in a steel color finish.

Technical specifications:

  • Commercial reference: EPH2900262
  • Manufacturer: Schneider Electric
  • EAN:
  • Series / range: Asfora
  • Product type: Single socket outlet
  • Number of sockets: 1
  • Pole configuration: 2P + E
  • Socket standard: CEE 7/3 (Schuko)
  • Earth configuration: Side earth
  • Rated current: 16 A
  • Rated voltage: 250 V AC
  • Power range: 3680 W
  • Protection feature: Shutters
  • Color / shade: Steel color
  • Material: ABS + PC (central plate)
  • Connection type: Screw terminals
  • Conductor material: Copper
  • Number of cables: 2 cables, 2.5 mm²
  • Cable flexibility: Flexible, rigid, single-wire, multi-wire
  • Strip length: 13.0 mm
  • Mounting: Flush-mount, screw or clip fixing (51-69 mm)
  • Device presentation: Mechanism with mounting frame
  • IP protection rating: IP20
  • Design depth: 10 mm
  • Width: 71 mm
  • Height: 71 mm
  • Depth: 42 mm
  • Weight: 0.069 kg
  • Standards: IEC 60884-1
  • Certifications: TSE, VDE, Aenor

Features and benefits:

  • Integrated shutters provide protection against accidental contact, enhancing safety in family and public environments.
  • Side earth (Schuko CEE 7/3) configuration ensures compatibility with standard European plugs.
  • Screw terminal connection accepts flexible, rigid, single-wire, and multi-wire conductors up to 2.5 mm².
  • Supplied without frame for flexible integration with matching Asfora frame accessories.
  • ABS + PC material construction offers durability and a quality painted finish in steel color.

Applications:

  • Residential flush-mount wiring installations in living rooms, bedrooms, and hallways.
  • Light commercial interiors requiring a consistent design series with protective shutters.
  • Renovation projects where a frameless mechanism is fitted into existing or new wall boxes.
  • Installations requiring Schuko-standard outlets with side earth for general-purpose socket circuits.

Compliant with IEC 60884-1 and certified by TSE, VDE, and Aenor. Part of the Schneider Electric Asfora range.

Also known as: Schneider EPH2900262, Schneider Electric EPH2900262, Asfora single socket with shutters, Schuko flush socket steel color.
