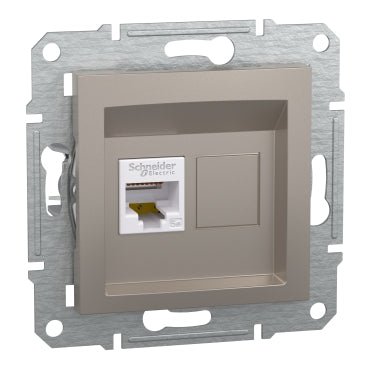

Schneider EPH4300169 Asfora 1xRJ45 Cat5e UTP Socket, Bronze

The Schneider Electric EPH4300169 is a single-port RJ45 Category 5e UTP communication socket from the Asfora range, designed for flush-mounted installation in standard wall boxes. Featuring a bronze-finish ABS central plate, it delivers a structured cabling connection point for data networks in residential and light commercial settings. IDC termination and copper contacts ensure reliable Cat5e signal performance.

Technical specifications:

• Commercial reference: EPH4300169
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Asfora
• Product type: Communication socket
• Socket type: RJ45
• Network category: Cat 5e
• Cable shielding: UTP
• Number of ports: 1
• Connection type: IDC
• Cable type: Rigid
• Conductor material: Copper
• Housing material: ABS (acrylonitrile-butadiene-styrene)
• Mounting: Flush-mounted
• Fixing method: Clamps, 51-80 mm
• Color finish: Bronze, painted
• Width: 71 mm
• Height: 71 mm
• Depth: 38 mm
• Installation depth: 9 mm
• Weight: 0.051 kg
• IP protection rating: IP20

Features and benefits:

• Supports Cat 5e UTP structured cabling for standard Ethernet data networks
• IDC termination enables fast, reliable connection without stripping individual conductors
• Flush-mount clamp fixing accommodates wall boxes with a depth range of 51-80 mm
• Bronze-finished ABS central plate matches other Asfora range devices for a coordinated wall appearance
• Copper contacts maintain signal integrity across the Cat 5e frequency range
• Compact 71 x 71 mm format fits standard single-gang wall plate positions

Applications:

• Residential home network data outlet installations for broadband and Ethernet connections
• Light commercial and office structured cabling for workstation network points
• Hotel and hospitality guest room data point installations
• School and educational facility network infrastructure wiring

Compliant with EU RoHS directive. Part of the Schneider Electric Asfora range.
