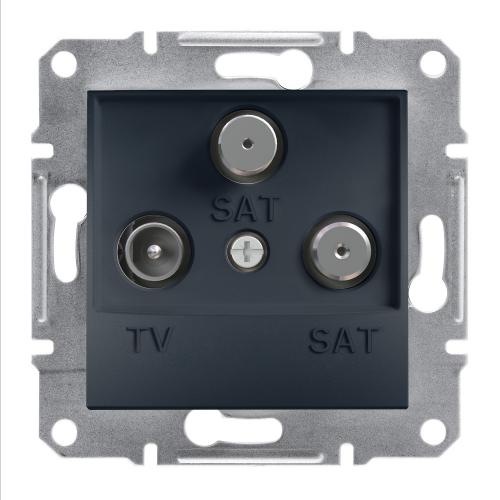

Schneider Asfora EPH3600171 TV-SAT-SAT End-of-Line Socket 1 dB Anthracite

The Schneider Electric Asfora EPH3600171 is a flush-mounted end-of-line (terminal) TV/SAT socket with one TV output and two SAT outputs at 1 dB attenuation. It is supplied as a mechanism with fixing frame in painted anthracite, ready to accept any Asfora cover plate.

Technical specifications:

• Catalog reference: EPH3600171
• Manufacturer: Schneider Electric
• Range: Asfora
• Product type: TV/SAT socket, end-of-line (terminal)
• For parallel and series distribution systems
• Number of sockets: 3 (1 TV + 2 SAT)
• TV connector: male IEC 9.52 mm
• SAT connector: F type
• Attenuation: 1 dB
• Number per line: 1
• DC current flow: in SAT socket
• Terminals: screwless, copper conductor
• Material: ABS central plate, painted finish
• Mounting: flush, claws 51-80 mm
• Device presentation: mechanism with fixing frame
• Dimensions: 71 x 71 x 42 mm (projecting depth 13 mm)
• Weight: 105 g
• IP rating: IP20
• Quality label: CE

Features and benefits:

• Three outputs (TV + 2 SAT) in a single flush plate for combined terrestrial/satellite reception
• Low 1 dB terminal attenuation maintains strong signal at the last point of the line
• DC pass-through on SAT for LNB powering by the receiver
• Anthracite painted finish for a modern dark-trim interior
• Mechanism-only format compatible with any matching Asfora cover plate

Applications:

• End outlet of a TV + twin-LNB satellite installation
• Hotel rooms, living rooms and home offices in dark-trim interior schemes
• Combined terrestrial and satellite reception in residential apartments
• Renovation projects standardising on Asfora anthracite plates
