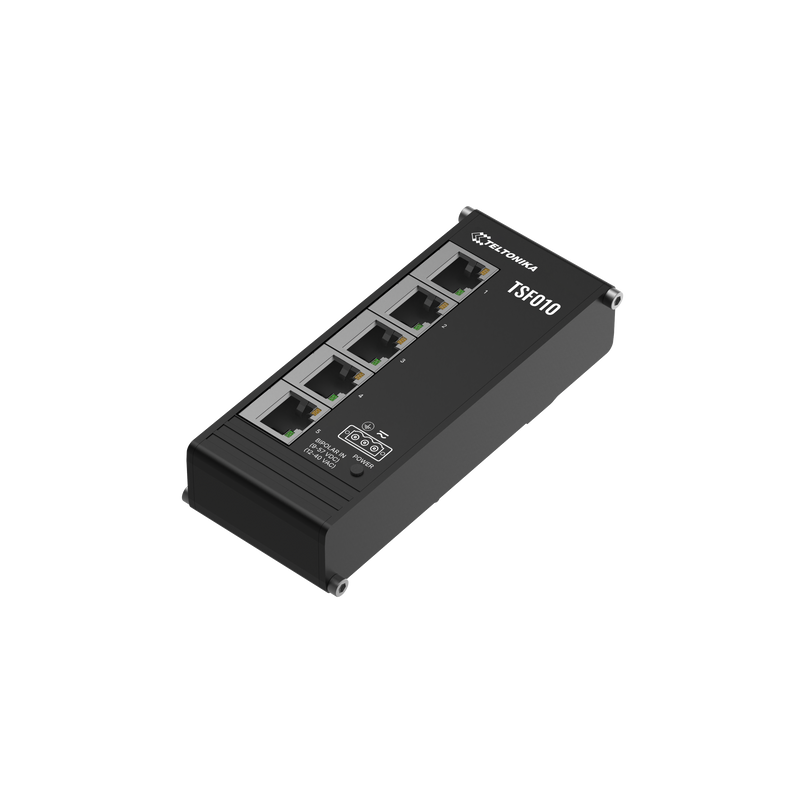

Teltonika TSF010010000 TSF010 Flat Unmanaged Switch, 5x 10/100, AC/DC Input

The Teltonika TSF010010000 is the AC/DC input version of the TSF010 flat unmanaged switch, accepting 9 - 57 VDC or 12 - 40 VAC on its 3-pin connector. It provides five 10/100 Mbps RJ45 ports in a 28 mm high anodised aluminium housing with an integrated DIN rail bracket, and is supplied without a power adapter.

Technical specifications:

• Manufacturer: Teltonika Networks
• Model: TSF010
• Order code: TSF010010000
• Product type: Unmanaged flat industrial Ethernet switch
• Hardware version: TSF010 *1***0, input voltage range 9 - 57 VDC and 12 - 40 VAC (50/60 Hz), without Profinet
• Package: Standard package without PSU
• Ethernet: 5 x ETH ports, 10/100 Mbps, auto MDI/MDIX crossover
• IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
• Bandwidth (non-blocking): 10 Gbps
• Packet buffer: 128 KB
• MAC address table size: 2K entries
• Jumbo frame support: 9216 bytes
• Power input connector: 3-pin industrial DC power socket
• Input voltage range (DC): 9 - 57 VDC, overvoltage protection 60 Vmax, reverse polarity protection 80 Vmax, surge protection min 64.4 V/max 71.2 V breakdown voltage, 93.6 V maximum reverse voltage at 4.3 A maximum reverse surge current
• Input voltage range (AC): 12 - 40 VAC (50/60 Hz)
• Power consumption: Idle: 1 W / Max: 1.5 W
• Ethernet ports: 5 x RJ45 ports, 10/100 Mbps
• Status LEDs: 1 x power LED, 10 x ETH status LEDs
• Grounding: Grounding terminal on power connector
• Casing material: Anodised aluminium housing and panels
• Dimensions (W x H x D): 113 x 28 x 50 mm
• Weight: 142 g
• Mounting options: Integrated DIN rail bracket
• Operating temperature: -40 °C to 75 °C
• Operating humidity: 5% to 95% non-condensing
• Ingress Protection Rating: IP30
• Standard package: TSF010 switch, 3-pin power connector, quick start guide
• Classification codes: HS 851762, HTS 8517.62.00

Features and benefits:

• Plug-and-play unmanaged switching with no configuration required
• Accepts both DC (9 - 57 V) and low-voltage AC (12 - 40 V) supplies
• Flat 28 mm profile and 142 g weight for shallow cabinets
• Integrated DIN rail bracket for quick mounting
• Wide -40 °C to 75 °C operating range
• Low power draw of 1.5 W maximum

Applications:

• Adding Ethernet ports in control cabinets and distribution boards
• Connecting PLCs, HMIs, cameras and controllers on industrial sites
• Installations powered from 24 VAC control transformers or DC rails
• Smart city, retail and energy deployments

Certifications listed by Teltonika for EMEA include CE, UKCA, RoHS and REACH.

Also known as: TSF010010000, TSF010 flat Ethernet switch AC/DC, Teltonika 5-port unmanaged DIN rail switch, TSF010 12-40 VAC switch
