Telemecanique XUX1ARCNT16 Photoelectric Sensor Reflex 14m Relay 24-240V AC/DC

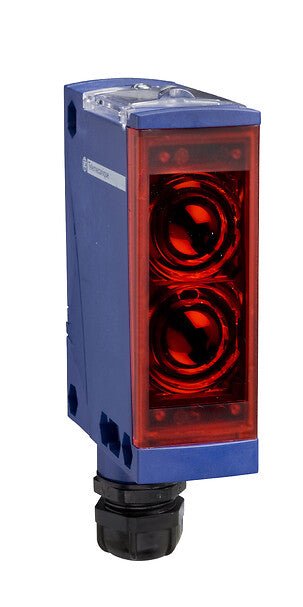

The Telemecanique XUX1ARCNT16 is an XUX reflex photoelectric sensor in a compact 92 x 71 plastic housing, with a 14 m nominal sensing distance when used with the XUZC50 reflector. It runs on 24...240 V AC/DC and has a 1 C/O relay output on screw-clamp terminals.

Technical specifications:

• Commercial reference: XUX1ARCNT16
• Manufacturer: Telemecanique Sensors
• Range: Telemecanique Photoelectric sensors XU
• Series: General purpose single mode
• Sensor name: XUX
• Sensor design: Compact 92 x 71
• Detection system: Reflex, infrared emission
• Nominal sensing distance [Sn]: 14 m with reflector XUZC50
• Maximum sensing distance: 20 m reflex
• Output: 1 C/O relay, discrete
• Wiring technique: 5-wire
• Rated supply voltage [Us]: 24...240 V AC/DC
• Supply voltage limits: 20...264 V AC
• Switching capacity: 3 A (cos phi = 1, 0.5 million cycles at 1 cycle per second at 250 V)
• Switching frequency: <= 20 Hz
• Maximum voltage drop: <1.5 V (closed state)
• Current consumption: <= 35 mA no-load
• Maximum power consumption: 2 W AC/DC
• Response time: 25 ms, recovery 25 ms, first-up delay 60 ms
• Setting-up: Without sensitivity adjustment
• Electrical durability: 500 000 cycles at 250 V (cos phi 1 and 0.4)
• Electrical connection: Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor
• Cable entry: 1 entry for M16 x 1.5 cable gland, cable outer diameter 7...10 mm
• Status LEDs: yellow (output state), green (supply)
• Enclosure material: PBT, lens PMMA
• Dimensions (H x W x D): 92 x 31 x 77 mm
• Degree of protection: IP67 double insulation per IEC 60529
• Operating temperature: -25...55 °C
• Storage temperature: -40...70 °C
• Vibration resistance: 7 gn, +/- 1.5 mm (10...55 Hz) per IEC 60068-2-6
• Shock resistance: 30 gn (11 ms) per IEC 60068-2-27

Features and benefits:

• Universal 24...240 V AC/DC supply, one sensor for AC or DC control circuits
• Changeover relay output switches loads up to 3 A directly
• 14 m nominal reflex range, up to 20 m maximum
• Separate green supply and yellow output LEDs
• IP67 double insulated housing

Applications:

• Object detection across conveyors and doorways
• Vehicle and material detection at gates and loading bays
• Packaging and material handling lines
• Replacement for an existing XUX reflex sensor

Reflector XUZC50 required for the stated range. Marked CE. Certifications: CSA, UL.
