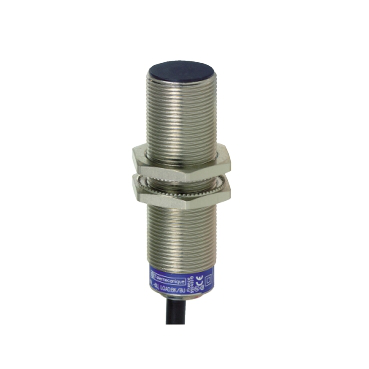

Telemecanique XS618B1PAL5 Inductive Sensor M18 Sn 8mm PNP NO 12-48V DC 5m

The Telemecanique XS618B1PAL5 is an XS6 inductive proximity sensor, cylindrical M18, with a nominal sensing distance of 8 mm. It is flush mountable and has a 3-wire 1 NO output (PNP) for 12...48 V DC. Connection is by a 5 m cable.

Technical specifications:

• Commercial reference: XS618B1PAL5
• Manufacturer: Telemecanique Sensors
• EAN: 3389110133240
• Range: Telemecanique Inductive proximity sensors XS
• Series: General purpose
• Sensor type: Inductive proximity sensor
• Sensor name: XS6
• Sensor design: Cylindrical M18
• Body type: Fixed
• Electrical connection: Cable
• Flush mounting: Flush mountable
• Nominal sensing distance [Sn]: 8 mm
• Operating zone: 0...6.4 mm
• Type of output signal: Discrete
• Wiring technique: 3-wire
• Discrete output function: 1 NO
• Discrete output type: PNP
• Output circuit type: DC
• Cable length: 5 m
• Cable composition: 3 x 0.34 mm²
• Rated supply voltage [Us]: 12...48 V DC with reverse polarity protection
• Supply voltage limits: 10...58 V DC
• Switching capacity: <= 200 mA DC with overload and short-circuit protection
• Switching frequency: <= 1000 Hz
• Maximum voltage drop: <2 V (closed)
• Current consumption: <= 10 mA no-load
• Status LED: Output state: 1 LED (yellow)
• Thread type: M18 x 1
• Threaded length: 52 mm
• Front material: PPS
• Enclosure material: Nickel plated brass
• Length: 62 mm
• IP degree of protection: IP68 double insulation conforming to IEC 60529; IP69K conforming to DIN 40050
• Operating temperature: -25...70 °C
• Storage temperature: -40...85 °C
• Certifications: UL, CSA, E2
