SQ063AFPB Giovenzana Additional Pole NO Base Mount SQ063 Switch-Disconnector

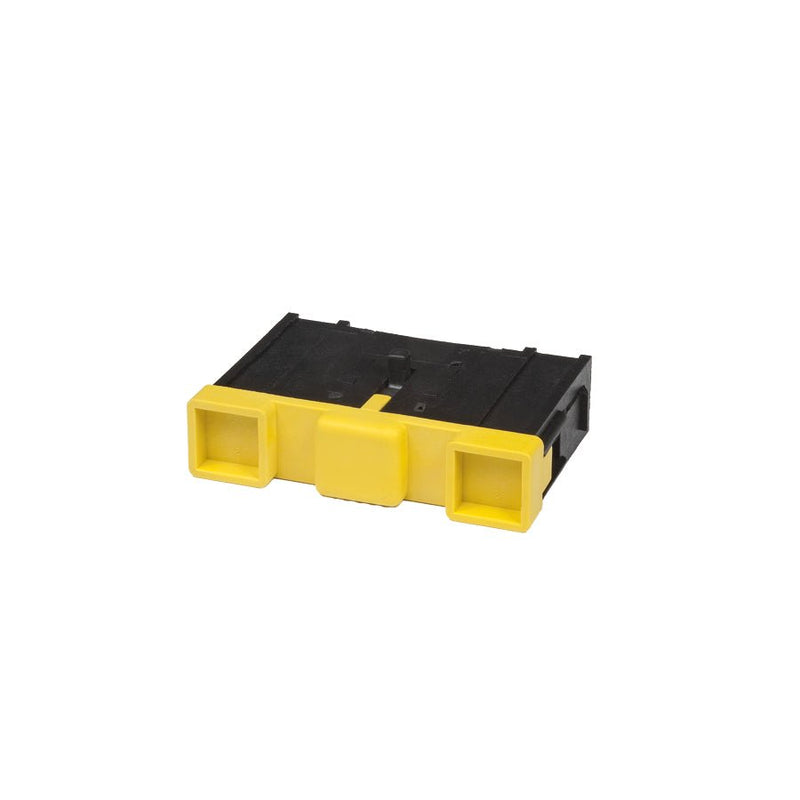

The Giovenzana SQ063AFPB is an additional normally open (NO) pole for Regolus SQ063 switch-disconnectors in the base mounting version. It adds one extra switched pole to the disconnector.

Technical specifications:

• Part number: SQ063AFPB
• Manufacturer: Giovenzana
• EAN: 8718234043510
• Series: Regolus SQ switch-disconnectors
• Type: additional pole, NO (terminals 7-8)
• Compatible with: SQ063 switch-disconnectors, base mounting
• Contacts: slow action, double breaking
• Rated operating voltage Ue: 690 V
• Rated insulation voltage Ui: 690 V
• Rated impulse withstand voltage Uimp: 8 kV
• Rated thermal current Ith / enclosed Ithe: 80 A
• Rated operating current Ie: AC-21A / AC-22A 80 A at 690 V, AC-23A 75 A at 400 V, AC-3 60 A at 400 V
• Rated short-time withstand current Icw (1 s): 1500 A
• Rated short circuit making capacity Icm: 2800 A
• Conditional rated short circuit current: 10 kA with 80 A gG fuse at 690 V
• UL508 general use: 80 A at 600 V AC
• Terminals: A8 caliber, M5 screw, tightening torque 3 N·m
• Conductor cross-section: 1.5 to 25 mm² (AWG 10 to 2), flexible or solid
• Marking: CE; approvals UL, IMQ

Applications:

• Adding a fourth switched pole to a base-mounted SQ063
• Main isolator panels that need an extra switched conductor
• Machine and control panel isolation
• Spare or replacement pole for base-mounted SQ063 units

Characteristics to EN 60947-3 and UL508, from the Giovenzana SQ040/SQ063 additional poles datasheet.

Also known as: Giovenzana SQ063AFPB, SQ063 additional NO pole, Regolus SQ063 additional pole base, SQ063 switch-disconnector extra pole, Giovenzana additional pole 80A.
