Schneider SDD111502 Sedna Rotary LED Dimmer RC/RL 5-200W 230V White
Free Shipping
Get free shipping on orders exceeding €300!

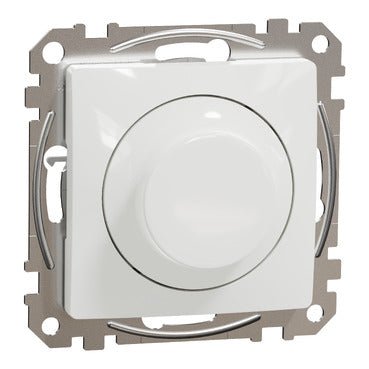

The Schneider Electric SDD111502 is a rotary LED dimmer from the Sedna Design and Elements range, finished in White. It supports both RC (capacitive) loads for LED and CFL lamps and RL (inductive) loads for conventional halogen and incandescent lamps, covering a power range of 5 to 200W. Rotary push control provides smooth dimming with an integrated electronic overload and short-circuit protection. Note: the mechanism depth of 55mm requires a back box with at least 60mm depth.
- Series: Schneider Electric Sedna Design and Elements
- Type: Rotary LED dimmer with push on/off
- Load type: RC (capacitive - LED, CFL) and RL (inductive - halogen, incandescent)
- Power range: 5-200W
- Compatible lamps: Dimmable LED (5-100W), CFL, halogen, incandescent
- Rated voltage: 230V AC
- Colour: White
- Mechanism dimensions: 73 x 73 x 55 mm (deeper than standard switches)
- Minimum back box depth: 60 mm
- Ingress protection: IP20
- Protection: Electronic short-circuit and overload protection
- Material: ABS thermoplastic, UV stabilised, halogen free
- Connection: Screwless push-in terminals, up to 2.5 mm²
- Mounting: Flush-mounted, claw and screw fixing
- Compliant with IEC/EN 60669-2-5; certified CE
- Part number: SDD111502
- Manufacturer: Schneider Electric
