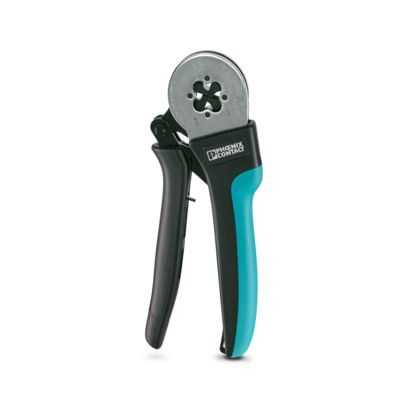

Phoenix Contact 1202882 Crimping Pliers 0.14-6 mm

The Phoenix Contact CRIMPFOX CENTRUS 6S-NC (1202882) is a crimping tool for uninsulated and insulated ferrules to DIN 46228 Part 1 and 4, covering 0.14 mm² to 6 mm² with lateral insertion and automatic cross section adjustment.

• Compatible ferrule types: Uninsulated and insulated ferrules per DIN 46228 Part 1 and 4
• Cross section range (metric): 0.14 mm² – 6 mm²
• TWIN ferrule range: 2 × 0.5 mm² – 2 × 4 mm²
• Cross section range (AWG): AWG 26–10; TWIN: 2 × AWG 20 – 2 × AWG 12
• Crimping type: Square crimp with self-adjusting crimping die
• Insertion method: Lateral insertion
• Pressure lock: Tool-free unlockable; ensures consistently high-quality crimping results
• Handle: Ergonomic two-component design with non-slip pad and particularly small handle width
• Actuation force: Up to 30% lower than standard, achieved through optimised leverage
• Dimensions (W × H × L): 65 mm × 22 mm × 175 mm
• Weight (excluding packaging): 368.74 g
• Colour: Black/green
• Country of origin: Sweden
• REACH compliance: No substance above 0.1 wt%
