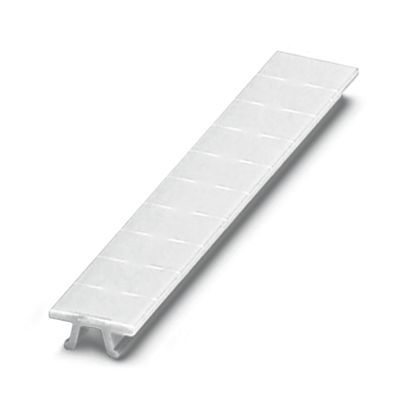

Phoenix Contact 1051016:0081 ZB 6 Zack marker strip 10-section, numbers 81-90, 6,2mm terminal Blocks

The Phoenix Contact ZB 6 (1051016:0081) is a 10-section Zack marker strip pre-printed with consecutive numbers 81–90, designed for horizontal labelling of terminal blocks with a 6.2 mm pitch.

• Product type: Terminal marker (Zack marker strip), 10-section
• Printed marking: Consecutive numbers 81–90, horizontally labelled
• Terminal block pitch: 6.2 mm
• Mounting type: Latching
• Slot type: High
• Colour: White (RAL 9010)
• Material: Polyamide (PA); base element also PA
• Flammability rating (UL 94): V2
• Components: Free from silicone and halogen
• Operating temperature: −40 °C to +100 °C
• Dimensions (W × H × D): 6.15 mm × 10.5 mm × 4.20 mm
• Text field dimensions (W × H): 6.15 mm × 10.50 mm
• Wipe resistance standard: DIN EN 61010-1 (VDE 0411-1)
• EU RoHS: Compliant, no exemptions; no REACH SVHC above 0.1 wt%
