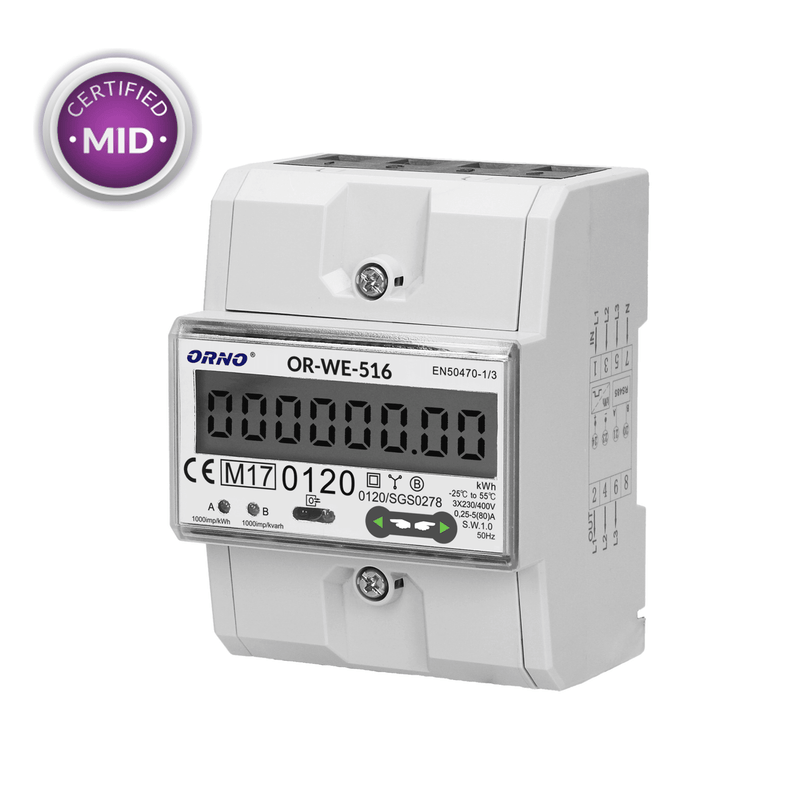

ORNO OR-WE-516 3-Phase Energy Meter RS-485 80A MID 4.5 Module DIN Rail

The ORNO OR-WE-516 is a 3-phase DIN rail energy meter that measures consumption in kWh and supports remote reading of registers via a wired RS-485 network using the Modbus protocol. An electronic circuit generates pulses proportional to energy consumed; phase consumption is signalled by a flashing LED, and the total is shown on an LCD display.

• Type: 3-phase
• Base current (Ib): 5 A
• Maximum current (Imax): 80 A
• Minimum current: 0.25 A
• Measurement accuracy class: B
• Pulse output: 1000 imp/kWh
• Display: LCD, 6 + 2 digits, no backlight
• Communication: RS-485, Modbus protocol
• Additional interface: IR optical port
• Multi-tariff: No
• Degree of protection: IP51
• MID certificate: 2014/32/EU, no. 0120/SGS0278
• DIN rail mounting: TH-35 mm, 4.5 modules wide
• Dimensions (W x H x D): 76 x 100 x 66 mm
