HL36P05 36-Module 24-Way Pre-Wired 3-Phase Distribution Board 40A 30mA RCD IP30

The HL36P05 is a prefabricated, pre-wired and tested 36-module distribution board, supplied ready to connect. It pairs a Hager Volta flush IP30 enclosure with Legrand RX³ protective devices: a 4-pole 40A 30mA Type A RCD feeding 24 single-pole B16 circuits. Built for three-phase 230/400V installations in homes, apartments and light commercial premises, it arrives with busbar, neutral and earth bars and internal wiring already done, leaving 8 spare ways for future circuits.

Technical specifications

• Part number: HL36P05

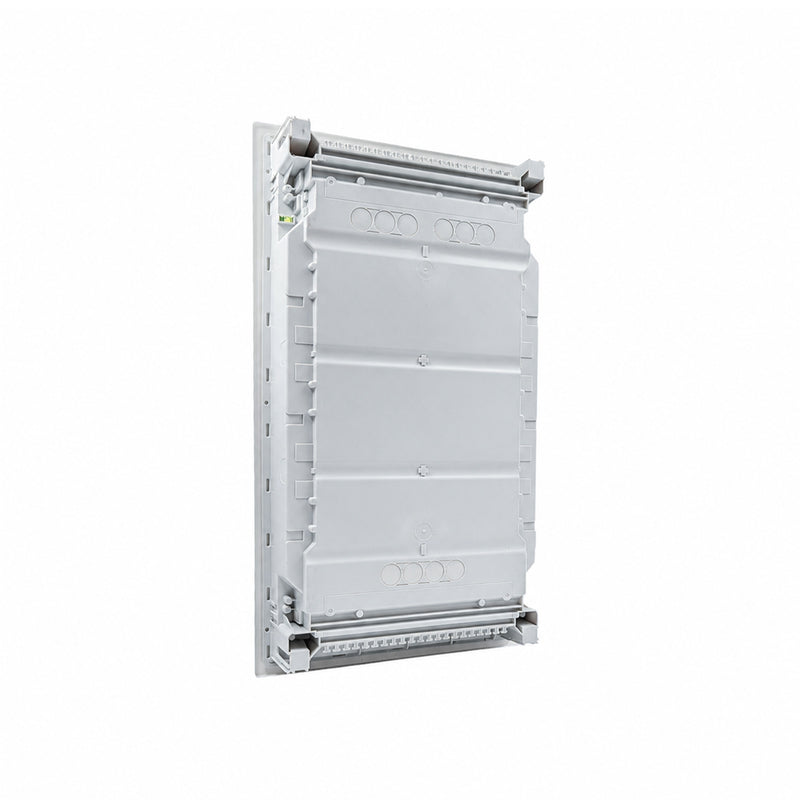

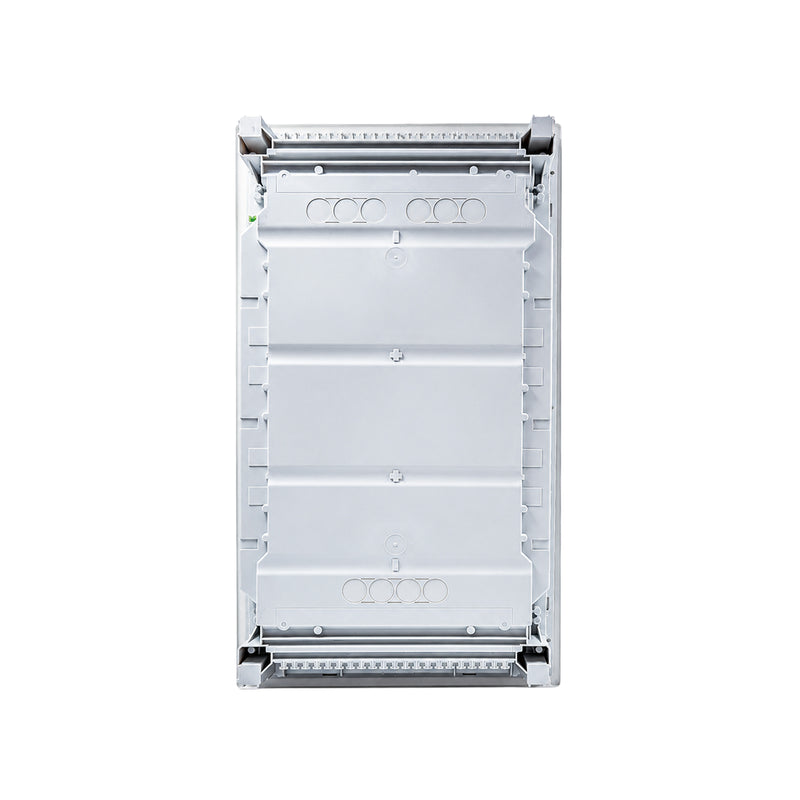

• Enclosure: Hager Volta VU36NC, flush (recessed) wall mounting
• Module capacity: 36 (3 rows of 12 x 18mm)
• Protection rating: IP30
• Dimensions (approx.): 630 x 348 x 98 mm (H x W x D)

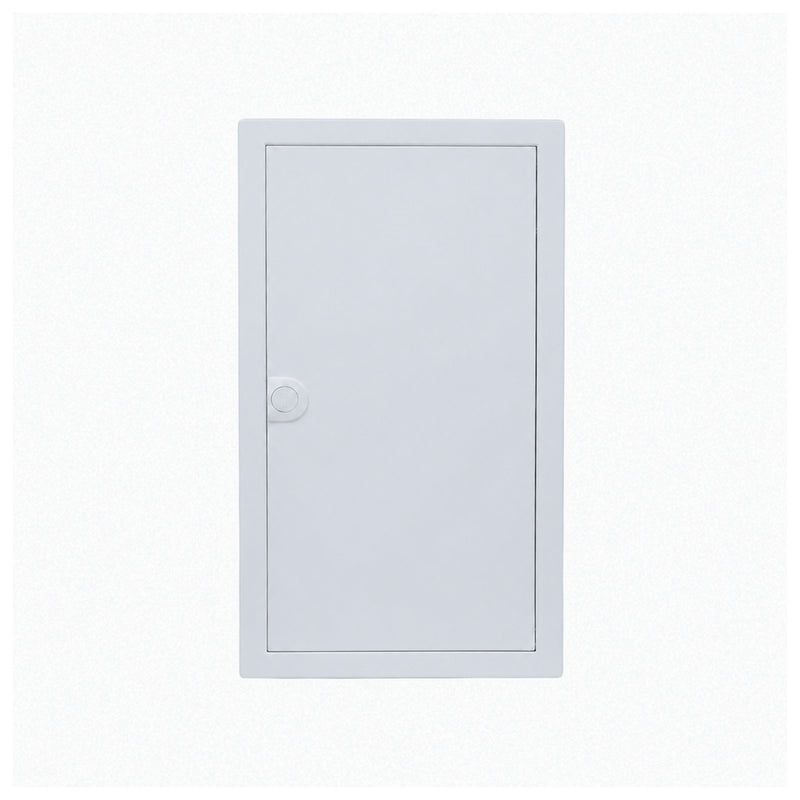

• Door: white hinged steel door with quarter-turn latch and technical-data label

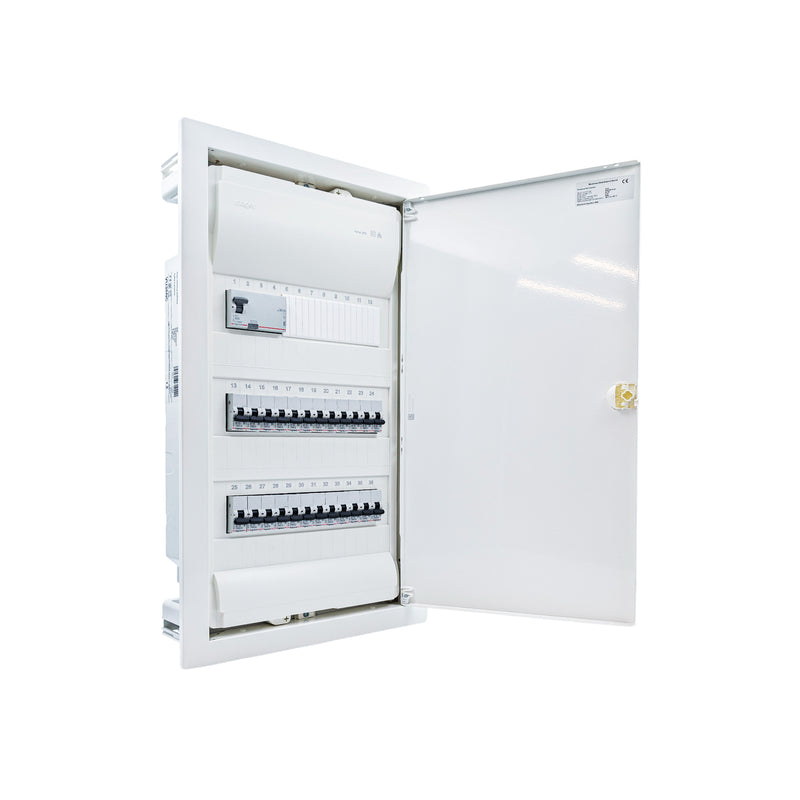

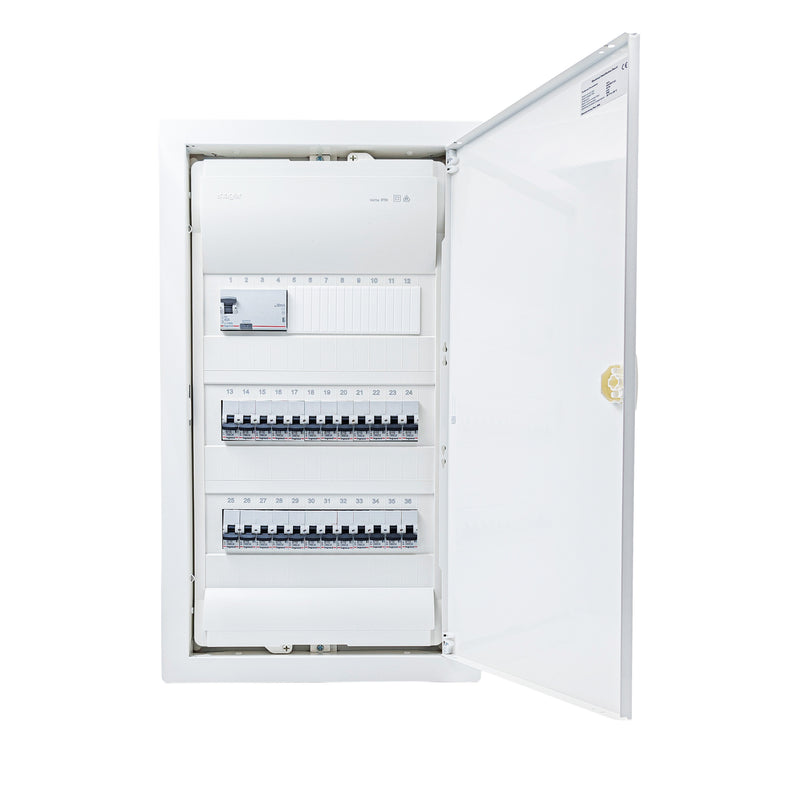

• Main protection: Legrand RX³ 402075 RCCB, 4-pole, 40A, 30mA, Type A, 400V
• Outgoing protection: 24 x Legrand RX³ 419136 MCB, 1-pole, B16, 6kA, 230V
• Modules used: 28 of 36 (8 spare ways for future circuits)

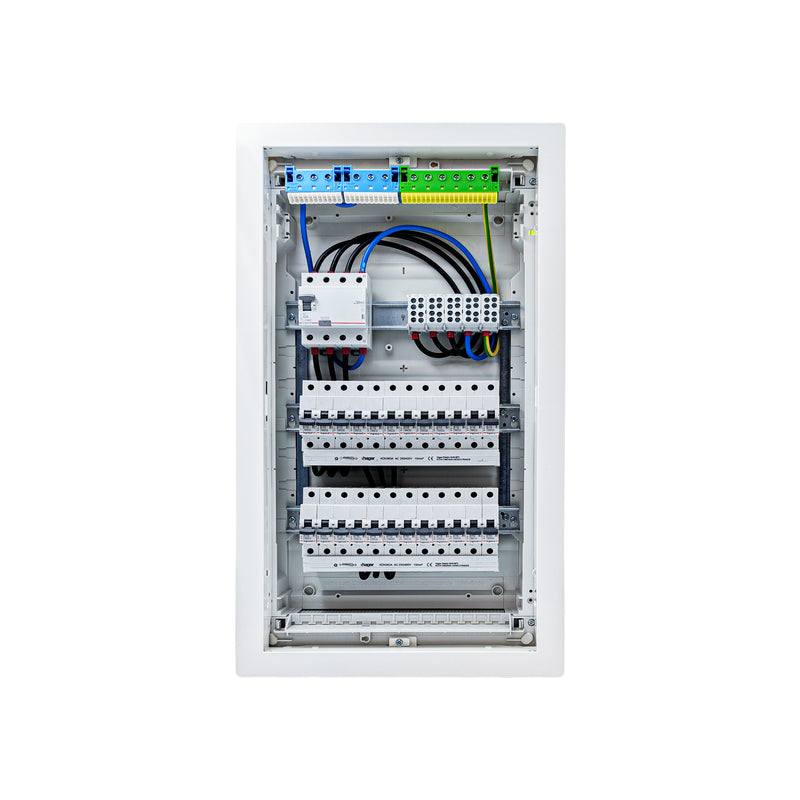

• Internal wiring: 10 mm² H07V-K with insulated ferrules; Hager KDN363A 3-phase, 12-module busbar comb
• Distribution bars: separate neutral (blue) and protective earth (green/yellow) terminal bars
• Supply: three-phase, 230/400V AC, 50Hz

Features and benefits

• Prefabricated, pre-wired and tested: no internal assembly, busbar cutting or comb wiring on site
• Type A RCD trips on both AC and pulsating DC residual currents, covering circuits with electronic loads that a Type AC device would miss
• 30 mA sensitivity adds protection against electric shock
• B16 curve breakers suit general lighting and socket circuits with low inrush
• 8 spare module ways for adding circuits later
• Flush enclosure finishes level with the wall surface
• Branded protection throughout: Hager Volta enclosure, Legrand RX³ devices

Applications

• New three-phase consumer units in houses and apartments
• Renovation and rewiring projects
• Light commercial and office sub-distribution
• Replacement of older fuse boards

Built from components compliant with IEC 61008-1 (RCD) and IEC 60898-1 (MCBs); enclosure to DIN 43870, IP30 per IEC 60529.

Also known as: pre-wired 3-phase consumer unit 36 module, populated distribution board 40A 30mA, Hager Volta Legrand RX3 board, flush mount fuse board 3 phase, ready wired distribution board
