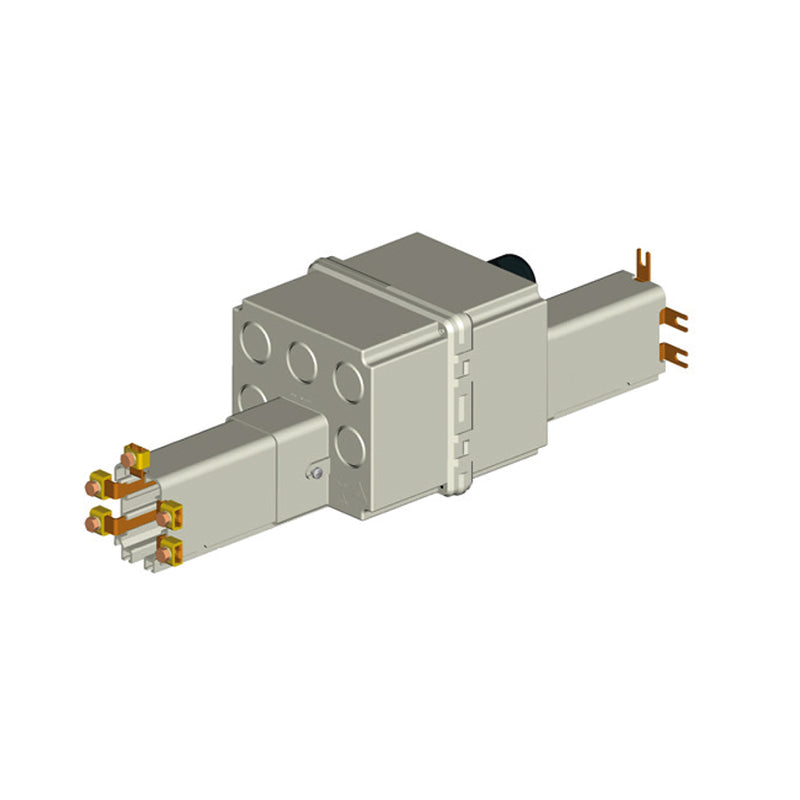

Giovenzana TR6008A4W In-Line Feed Box TR60 Busbar 4-Conductor Pre-Mounted

The Giovenzana TR6008A4W is an in-line feed box for TR60 busbar lines with pre-mounted conductors. Installed part-way along the track rather than at its end, it adds an intermediate power feed point that cuts voltage drop on longer runs. The four copper conductor strips come already inserted, and an M25 cable gland is supplied for the incoming supply cable.

Technical specifications:

• Part number: TR6008A4W
• Manufacturer: Giovenzana
• EAN: 8718234234338
• Series: TR60 busbar system, pre-mounted conductor version
• Product type: in-line feed box
• Number of conductors: 4
• Conductor section: 15 mm² (10 × 1.5 mm)
• Conductor material: copper
• Body material: nylon
• Busbar material: PVC
• Colour: white RAL 1013
• Cable entry: M25 cable gland, supplied
• Weight: approx. 805 g

Features and benefits:

• Copper strips factory-inserted, so the feed box joins the line without threading conductors on site
• Mid-line feeding: per Giovenzana's sizing guide, an in-line feed halves the track length to consider for voltage drop (Lt = L/2)
• Matches the 4-conductor TR60 pre-mounted range, including the TR6003A4W end feeder and the TR6034A4W / TR6035A4W transfer guides
• 5-conductor version available as TR6008A5W

Applications:

• Intermediate power feeding of TR60 busbar lines on overhead cranes and electric hoists
• Long conductor-bar runs where a single end feed would give too much voltage drop
• Monorails and other material-handling systems with travelling consumers

CE marked (Giovenzana TR85/TR60 declaration); EAC certified.

Also known as: Giovenzana TR6008A4W, TR60 in-line feed 4P, TR60 pre-wired in-line feed white RAL 1013, TR60 busbar intermediate feed box, conductor bar line feed 4 pole
