Hager FWU33S FWU Distribution Box 108 Module IP30 flush-mounted

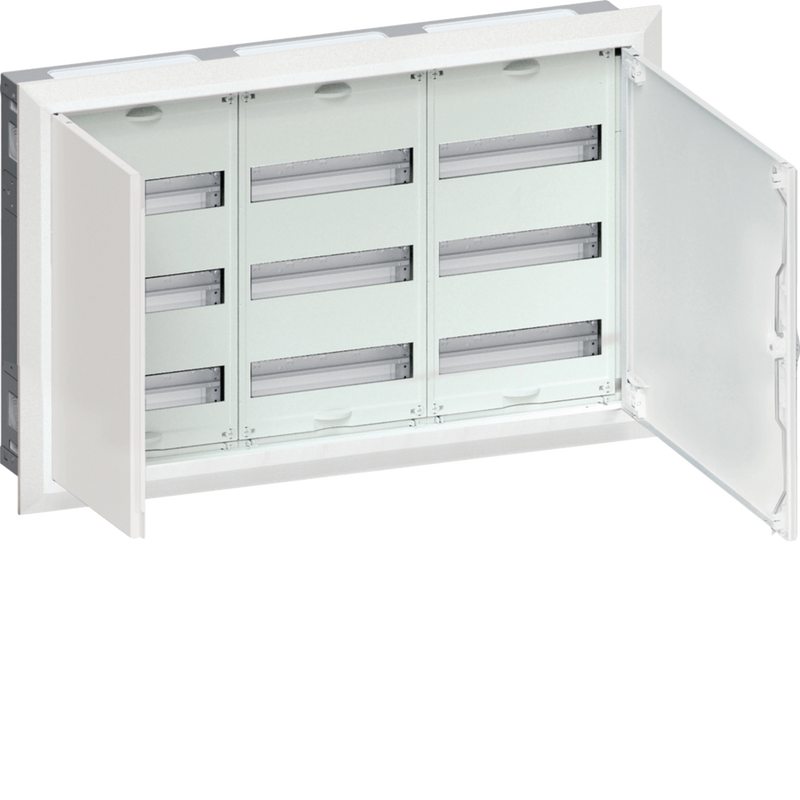

The Hager FWU33S is a flush-mounted field distribution board (Feldverteiler UP) with 108-module capacity across 3 rows, rated at 125 A with IP30 protection and Protection Class II (SKII). Designed for recessed hollow-wall installation, it delivers a high-capacity electrical distribution solution for residential and commercial premises.

Technical specifications:

• Catalog reference: FWU33S
• Manufacturer: Hager
• Product type: Flush-mounted field distribution board, 108 modules
• Rated current: 125 A
• IP rating: IP30
• Protection class: Class II (SKII)
• Impact resistance: IK09
• Number of modules: 108
• Number of rows: 3
• Number of sections: 3
• Number of DIN rails: 9
• Mounting: Flush-mount, hollow wall
• Overall dimensions (H × W × D): 553 × 853 × 125 mm
• Installation dimensions (H × W × D): 502 × 810 × 112 mm
• Niche dimensions: 507 × 815 × 115 mm
• Width in module units: 36
• Door type: Asymmetric double door (2 doors)
• Handle: Folding handle with turn button
• Cable/conduit entries: 6
• Neutral terminal block: Yes
• Earth terminal block: Yes
• Mounting plate: No
• Transparent door: No
• Lock: None
• Material: Steel
• Color: Pure white (RAL 9010)
• Suitable for outdoor use: No
• RoHS compliant: Yes

Features and benefits:

• 108-module capacity across 9 DIN rails and 3 rows allows extensive circuit distribution within a single enclosure
• Integrated neutral and earth terminal blocks simplify wiring and grounding connections without additional components
• Asymmetric double door with folding handle and turn button provides convenient, controlled access to the panel
• IK09 impact resistance rating ensures reliable mechanical protection in occupied or trafficked areas
• RoHS-compliant steel construction in pure white (RAL 9010) meets current environmental and installation standards

Applications:

• Main distribution boards in large residential properties or multi-unit apartment buildings
• Sub-distribution panels in commercial offices, retail units, or public buildings
• Electrical riser installations requiring a flush-mounted, high-module-count enclosure
• Mixed-use developments where a 125 A, 108-module recessed panel suits the load profile

Also known as: Hager FWU33S, flush-mounted distribution board 108 modules, recessed consumer unit 125 A.
