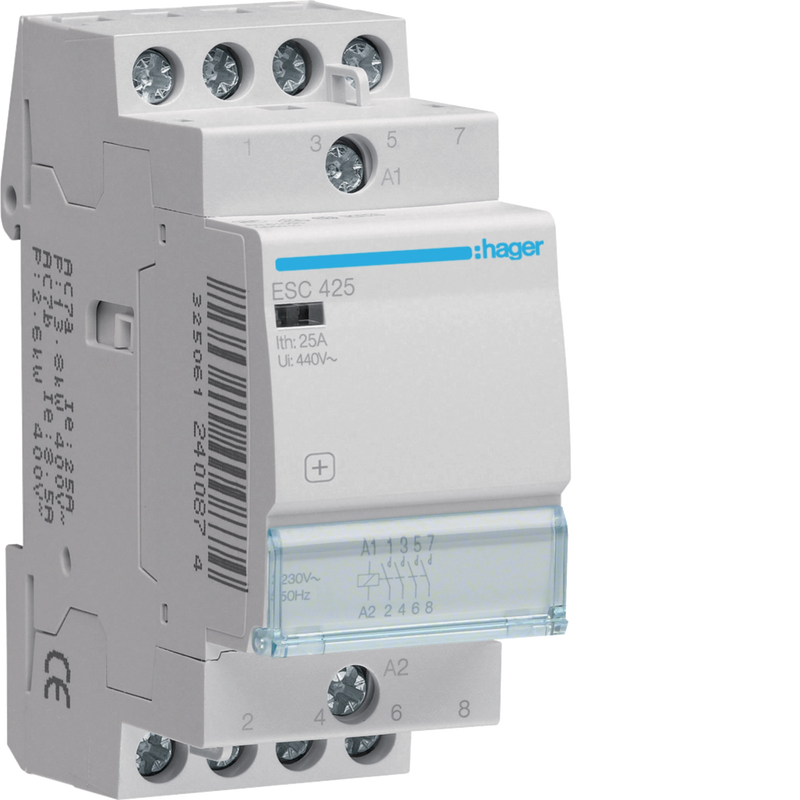

Hager ESC425 ESC Contactor 4P 25 A 230V AC Coil

The Hager ESC425 is a 4-pole installation contactor rated at 25 A with a 230 V AC control coil and a 400 V rated operating voltage. It features 4 normally-open contacts and occupies just 2 DIN rail modules, making it suitable for switching applications in building installation panels. Usage category AC-7a/AC-7b covers resistive and slightly inductive load circuits.

Technical specifications:

• Catalog reference: ESC425
• Manufacturer: Hager
• Product type: Installation contactor (Installationsschutz)
• Number of poles: 4
• Contact configuration: 4 normally-open (NO) contacts, 0 normally-closed (NC)
• Rated current: 25 A
• Rated operating voltage (Ue): 400 V
• Control voltage (AC): 230 V
• Insulation voltage (Ui): 440 V
• Impulse withstand voltage (Uimp): 4000 V
• Frequency: 50 Hz
• Usage category: AC-7a / AC-7b
• Number of DIN rail modules: 2
• Dimensions (H x W x D): 83 mm x 35.75 mm x 60 mm
• Connection cross-section, flexible conductor: 1-6 mm²
• Connection cross-section, rigid conductor: 1-10 mm²
• Tightening torque: 1.20 Nm
• Mechanical endurance: 100,000 switching cycles
• Electrical endurance: 30,000 switching cycles
• Total power dissipation at rated current: 7.50 W
• Pick-up consumption: 21 VA
• Operating temperature: -10 to 50°C
• Storage / transport temperature: -40 to 80°C
• RoHS compliant: Yes

Features and benefits:

• 4 normally-open poles in a 2-module DIN rail format minimises space in distribution boards.
• Impulse withstand voltage of 4000 V provides a high level of protection against transient overvoltages.
• 100,000 mechanical and 30,000 electrical switching cycles deliver long service life in frequently switched installations.
• Wide cable connection range (1-10 mm² rigid, 1-6 mm² flexible) accommodates varied installation wiring.
• RoHS-compliant design meets EU environmental requirements.

Applications:

• Centralised control of lighting circuits in residential and commercial distribution boards.
• Switching of electric heating loads and underfloor heating systems.
• Time-controlled or remote switching of 400 V AC loads via building management or timer systems.
• 4-pole load switching in DIN rail consumer units where all phases and neutral must be switched simultaneously.

Also known as: Hager ESC425, 4-pole installation contactor 25A 230V, Hager ESC series contactor.
