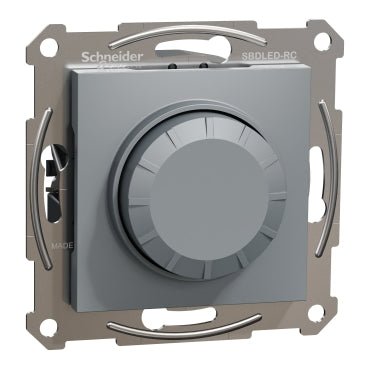

Schneider EPH6800162 Asfora Rotary Dimmer Multiwire LED 230V 370W Without Frame,

The Schneider Electric EPH6800162 is a rotary dimmer from the Asfora range, designed for Multiwire installation systems. It supports LED, resistive, and capacitive loads up to 370W at 230V AC, making it suitable for modern lighting control in residential and commercial interiors. The mechanism comes without a frame in white matte finish.

Technical specifications:

• Commercial reference: EPH6800162
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Asfora
• Product type: Dimmer (rotary knob type)
• Rated voltage: 230V AC 50/60 Hz
• Load type - resistive: 3-370 W
• Load type - LED: 0-200 W
• Load type - capacitive: 3-370 VA
• Switch function: Single-pole alternating
• Control type: Rotary knob
• Protection: Short circuit and overload protection with automatic reset
• IP rating: IP20
• Mounting: Flush (recessed)
• Connection type: Ferrule (sleeve) terminal, screw terminal
• Number of cables: 2 cables, 1.5-2.5 mm²
• Cable rigidity: Rigid, flexible, single-wire, multi-wire
• Strip length: 8 mm
• Conductor material: Copper
• Material: ABS (acrylonitrile butadiene styrene) - central plate and rotary knob
• Fixing method: Screws and clips
• Width: 71 mm
• Height: 71 mm
• Depth: 47 mm (installation depth: 29 mm)
• Weight: 0.099 kg
• Certifications: VDE, CE

Features and benefits:

• Compatible with LED, resistive, and capacitive loads from a single unit
• Flush-mount mechanism integrates with Asfora Multiwire wall system
• Automatic reset protection against short circuit and overload
• Accepts both rigid and flexible copper conductors up to 2.5 mm²
• Matte white ABS finish provides a clean, modern aesthetic
• Compact installation depth of 29 mm suits standard back boxes

Applications:

• Residential lighting control in living rooms, bedrooms, and hallways
• Office and commercial interior lighting dimming circuits
• LED downlight control in new-build and renovation projects
• Multiwire wiring system installations requiring modular switch gear
• Capacitive and resistive lamp load regulation in flush-mount switchplates

Certified to VDE standards and bearing CE marking. Part of the Schneider Electric Asfora range.
