Schneider EPH1600169 Asfora Illuminated Push-Button 1-Way 10A Bronze
Free Shipping
Get free shipping on orders exceeding €300!

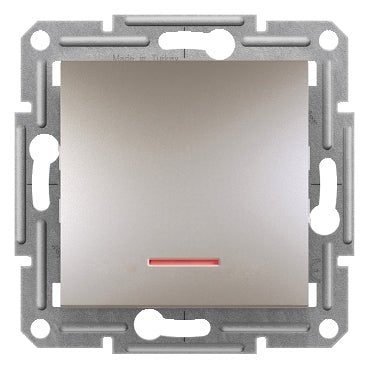

The Schneider Electric EPH1600169 is an Asfora illuminated push-button with a single rocker in a bronze colour finish, intended for flush installation in standard 71 x 71 mm wall plates. The integrated LED indicator helps locate the button in low light, and screwless terminals speed up wiring.
Technical specifications
- Range: Asfora
- Product type: Push-button (illuminated)
- Configuration: Mechanism with fixing frame and cover plate, 1 rocker
- Local signalling: LED
- Power range: 2300 W
- Rated current: 10 A at 250 V AC
- Terminal capacity: 2 conductors of 2.5 mm² (rigid, flexible or twisted stranded)
- Stripping length: 13.0 mm
- Connection mode: Screwless terminals
- Material: ABS (acrylonitrile butadiene styrene), painted finish
- Conductor material: Copper
- Mounting: Flush, screws or claws 51-70 mm
- Dimensions: 71 mm W × 71 mm H × 43 mm D, protrusion 15 mm
- Weight: 0.0608 kg
- Colour: Bronze
- Standard: IEC 60669-1
- Certifications: TSE, VDE, NF, CE, UKR
- IP rating: IP20
- Ambient operating temperature: -5 to 40 °C
Features and benefits
- Integrated LED locator makes the button easy to find in the dark
- Screwless terminals accept rigid, flexible and twisted-stranded copper conductors
- Warm bronze painted ABS finish suits classic and traditional decors
- Standard 71 x 71 mm form factor compatible with the wider Asfora plate range
- 10 A / 2300 W rating handles common lighting and bell-circuit loads
- IEC 60669-1 compliant with multiple national certifications
Applications
- Bell, intercom and momentary lighting control in homes and apartments
- Hotels and hospitality interiors where a bronze-toned button complements the decor
- Hallways, stairwells and bedrooms where a back-lit locator improves usability
Note: this catalog reference is marked discontinued by Schneider Electric. Functional replacement may be available from the same product range.
