Schneider EPH1300171 Asfora roller blind pushbutton 10A screwless anthracite
Free Shipping
Get free shipping on orders exceeding €300!
Original price
€3,07
-
Original price
€3,07
Original price
€3,07
€3,07
-
€3,07
Current price
€3,07

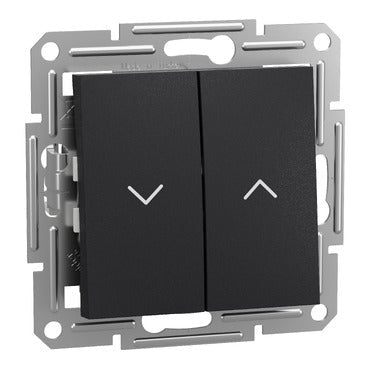

Schneider Electric Asfora EPH1300171 is a 2-rocker roller-blind push-button mechanism in anthracite finish, marked UP-DOWN for shutter and blind control. Rated 10 A at 250 V AC with a 2300 W power range, it uses screwless terminals and is designed for flush wall mounting.
Technical specifications:
- Catalog reference: EPH1300171
- Manufacturer: Schneider Electric
- Range: Asfora
- Product type: Push-button (2-rocker, roller blind / shutter control)
- Marking: UP-DOWN
- Device presentation: Mechanism with fixing frame
- Mounting: flush
- Rated current: 10 A at 250 V AC
- Power range: 2300 W
- Terminals: screwless, 2 cables 2.5 mm² (flexible / rigid / solid stranded), 13 mm stripping length
- Conductor material: copper
- Material: ABS (acrylonitrile butadiene-styrene), painted surface
- Colour: anthracite
- Dimensions (W x H x D): 71 x 71 x 43 mm; projecting depth 15 mm
- Fixing: screws or claws, 51...70 mm fixing range
- IP degree of protection: IP20
- Operating temperature: -5 to +40 deg C
- Standards: IEC 60669-1; certifications TSE, VDE, NF; quality labels CE, UKR
Features and benefits:
- Dedicated UP-DOWN marking ensures clear operation of motorised blinds
- Anthracite painted finish suits modern dark interior schemes
- Screwless terminals streamline wiring of motor live conductors
- Compact 71 x 71 mm format fits standard flush wall boxes
- Compliant with IEC 60669-1 and bearing TSE, VDE and NF approvals
Applications:
- Single-point control of roller-shutter motors in homes and apartments
- Operation of motorised blinds and awnings in hotels and offices
- Indoor shutter-control wall points where a dark anthracite finish is preferred
- Refurbishment of blind-control switching positions
