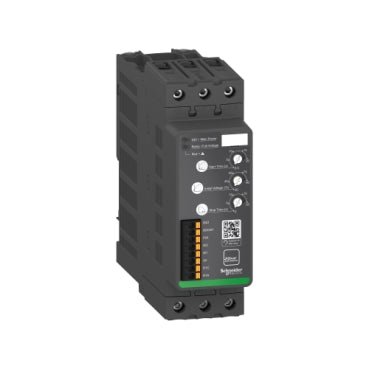

Schneider ATS130N2D65LT Altivar Soft Starter 65A 200-480V 30kW 24VDC

The Schneider Electric ATS130N2D65LT is a soft starter from the Altivar ATS130 series, rated 65A for 200-480V three-phase motors up to 30kW. An internal bypass contactor eliminates heat in the run state, and Modbus RTU via RJ45 provides standard fieldbus connectivity without additional hardware.

Technical specifications:

• Part number: ATS130N2D65LT
• Manufacturer: Schneider Electric
• Series: Altivar ATS130
• Rated current: 65A
• Supply voltage: 200-480V AC, 3-phase, 50/60Hz
• Motor power: 30kW at 400-480V
• Control supply: 24VDC
• Internal bypass: Yes
• Communication: Modbus RTU (RJ45)
• Ingress protection: IP20
• Standards: IEC/EN 60947-4-2, CE, UKCA, CCC, EAC, RCM

Features and benefits:

• Internal bypass contactor - no thyristor heat dissipation once motor is at full speed
• Wide voltage range 200-480V - one model covers 230V and 400V applications
• Modbus RTU on board - full motor and drive data available over fieldbus without extras

Applications:

• Pumps and fans up to 30kW needing controlled start and stop ramps
• Compressors and heavy conveyors where DOL starting causes electrical or mechanical stress
• Industrial systems with PLC or SCADA integration via Modbus network

Also known as: Schneider ATS130N2D65LT, Altivar ATS130 65A soft starter, ATS130 30kW 480V soft start with bypass.
