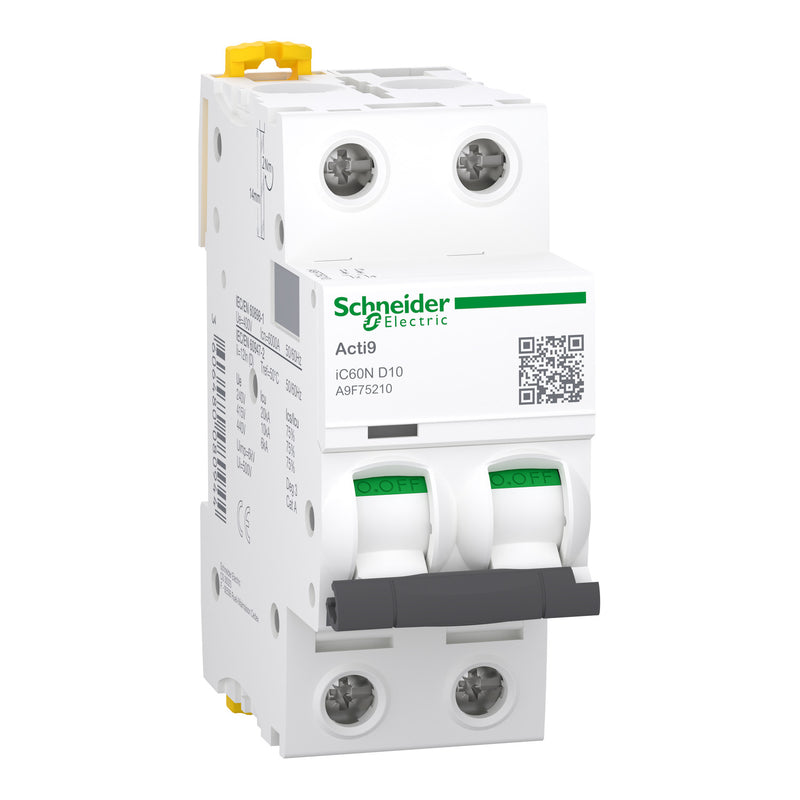

Schneider A9F75210 Acti9 iC60N MCB 2P D 10A 6kA

The Schneider Electric A9F75210 is a 2-pole miniature circuit breaker (MCB) from the Acti 9 iC60N range, with a D tripping curve suited to circuits with high inrush currents such as transformers and motor loads.

• Reference: A9F75210
• Range: Acti 9 iC60
• Model: iC60N
• Type: Miniature circuit-breaker (MCB)
• Poles: 2P, 2 protected poles
• Rated current (In): 10 A
• Tripping curve: D
• Magnetic tripping limit: 12 x In +/- 20 %
• Breaking capacity (Icn): 6000 A at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
• Breaking capacity (Icu): 10 kA at 380...415 V AC conforming to EN/IEC 60947-2
• Utilisation category: Category A conforming to EN/IEC 60947-2
• Rated insulation voltage (Ui): 500 V AC 50/60 Hz
• Rated impulse withstand voltage (Uimp): 6 kV
• Suitable for isolation conforming to EN/IEC 60898-1 and EN/IEC 60947-2
• Mounting: clip-on, 35 mm DIN rail
• Dimensions: 85 mm H x 36 mm W x 78.5 mm D, 4 x 9 mm pitches
• Terminals: 1...25 mm² rigid or 1...16 mm² flexible copper, 2 N.m tightening torque, 14 mm stripping length
• Degree of protection: IP20, IP40 in modular enclosure conforming to IEC 60529
• Ambient operating temperature: -35...70 °C
• Durability: 20000 mechanical cycles, 10000 electrical cycles
• Trip indicator and contact position indicator
• Colour: White
