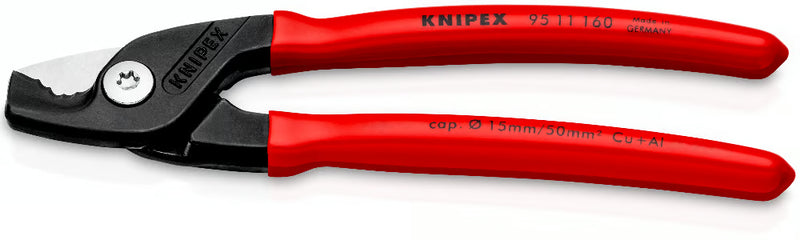

Knipex 95 11 160 Stepcut Cable Shears 160mm Multi-Stage Cut

The Knipex 95 11 160 StepCut Cable Shears measure 160 mm in overall length and are designed to cut stranded and solid copper and aluminium cables with up to 40% less hand force than standard cable shears of equivalent size. The multi-stage cutting action severs individual conductors one after another rather than all at once, reducing effort while producing a clean, crush-free cut. Compact at 180 g and 160 x 40 x 14 mm, this tool handles stranded cables up to 50 mm² (diameter 15 mm) and solid cables up to 5 x 4 mm².

Specifications:

• Part number: 95 11 160
• Manufacturer: Knipex
• EAN: 4003773085904
• Product type: StepCut cable shears
• Overall dimensions: 160 x 40 x 14 mm
• Weight: 180 g
• Cutting capacity - Cu/Al cable, stranded: 50 mm² / diameter 15 mm
• Cutting capacity - Cu/Al cable, stranded: AWG 1/0
• Cutting capacity - Cu/Al cable, solid: up to 5 x 4 mm²
• Finish: burnished
• Handles: plastic-coated
• REACH: contains no SVHC
• RoHS: not applicable

Features and benefits:

• Compact and lightweight at only 160 mm - cuts without crushing or deforming the cable
• Up to 40% less cutting force required compared to standard cable shears of the same length - stepped cutting action severs conductors one at a time
• Ergonomic handle geometry provides an optimal cutting feel even on larger cable diameters
• Cuts stranded Cu and Al cables up to diameter 15 mm (50 mm²)
• Cuts solid Cu and Al cables up to 5 x 4 mm²
• Screwed joint for precise, smooth-running and durable operation
• Pinch guard for safe working - not suitable for steel wire or hardened materials

Applications:

• Cutting stranded copper and aluminium installation cables during electrical fitting work
• Trimming multi-core NYM cables for distribution board wiring and cable routing
• Cutting cables in confined spaces or enclosures where larger tools cannot be used
• Preparing cable ends for termination in junction boxes, consumer units and switchgear panels
• General field use by electricians and installers requiring a compact, lightweight cutting tool

Also known as: Knipex 95 11 160, Knipex 9511160, Knipex StepCut 160, Knipex cable shears 160 mm.
