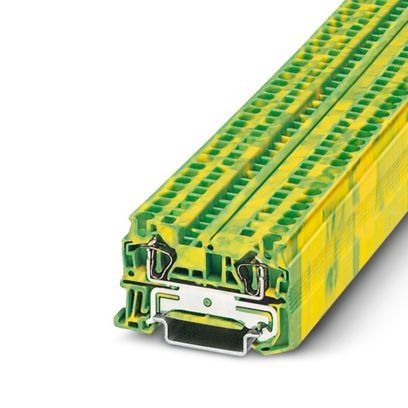

Phoenix Contact 3031380 ST 4-PE Spring-cage protective conductor terminal block

The Phoenix Contact ST 4-PE is a spring-cage protective conductor terminal block for reliable PE terminations in industrial switchgear and control panels. Rated at a nominal cross section of 4 mm², it accepts rigid conductors from 0.08 mm² to 6 mm² and mounts directly on NS 35/7.5 or NS 35/15 DIN rails, providing grounding without additional wiring.

Technical specifications:

• Part designation: ST 4-PE
• Catalog number: 3031380
• Manufacturer: Phoenix Contact
• EAN: 4017918186852
• Pack size: 50 pc
• Country of origin: DE
• Connection method: Spring-cage connection
• Number of connections: 2
• Nominal cross section: 4 mm²
• Conductor cross-section rigid: 0.08 mm² - 6 mm²
• Conductor cross-section flexible: 0.08 mm² - 4 mm²
• Conductor cross-section flexible, ultrasound-compressed: 0.34 mm² - 6 mm²
• Conductor cross-section with ferrule: 0.14 mm² - 4 mm²
• Cross section AWG: 28 - 10
• Stripping length: 8 mm - 10 mm
• Mounting type: NS 35/7.5, NS 35/15
• Rated surge voltage: 8 kV
• Overvoltage category: III, degree of pollution: 3
• Maximum power dissipation: 1.02 W
• Operating temperature: -60 °C to 110 °C
• Width: 6.2 mm, height: 56 mm, depth on NS 35/7.5: 36.5 mm, depth on NS 35/15: 44 mm
• Color: green-yellow
• Insulating material: PA, flammability rating UL 94 V0
• Weight: 12.2 g (excl. packing)
• ATEX/IECEx: II 2 GD Ex eb IIC Gb, rated operating range -60 °C to 85 °C
• Certifications: CSA, IECEE CB Scheme, KR
• Fire protection (DIN EN 45545-2): R22, R23, R24, R26 HL 1 - HL 3

Features and benefits:

• Direct DIN rail contacting delivers a low-resistance connection to ground potential without additional wiring effort
• Accepts very small and flexible conductors; no cross-section restriction when using ferrules
• Meets IEC 60947-7-2 requirements for protective conductor connections
• Operating range of -60 °C to 110 °C with ATEX/IECEx certification for use in hazardous areas
• Compatible with CLIPLINE complete standardized accessories for bridging, marking, and testing

Applications:

• Protective conductor terminations in machine building and plant engineering control cabinets
• Railway switchgear panels certified to DIN EN 45545-2 fire protection (HL 1 - HL 3)
• Hazardous area installations requiring ATEX/IECEx certified grounding terminals
• Process industry control panels requiring compliant PE conductor connections

Compliant with IEC 60947-7-2. Part of the Phoenix Contact ST product family within the CLIPLINE complete terminal block system.

Also known as: Phoenix Contact ST 4-PE, Phoenix 3031380, spring-cage PE terminal block 4 mm², green-yellow DIN rail grounding terminal.
