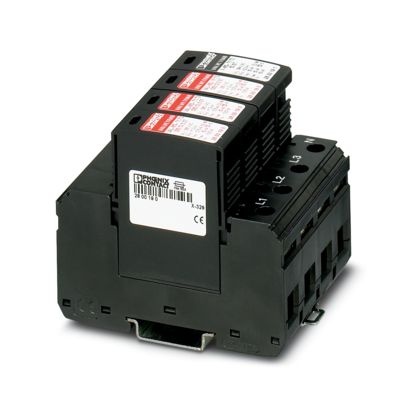

Phoenix Contact 2800184 VAL-MS-T1/T2 335/12.5/3+1 Lightning/surge arrester type

The Phoenix Contact VAL-MS-T1/T2 335/12.5/3+1 is a universal varistor-based plug-in lightning and surge arrester for 3-phase TN-S and TT power supply networks with separate N and PE conductors (5-conductor system: L1, L2, L3, N, PE). Combining Type 1 and Type 2 protection per IEC/EN, it delivers 12.5 kA impulse discharge current (10/350 µs) per L-N and L-PE position, qualifying it for Lightning Protection Levels III and IV. The pluggable DIN rail module features optical fault signalling and vibration-resistant latching for reliable long-term service.

Technical specifications:

• Part designation: VAL-MS-T1/T2 335/12.5/3+1
• Catalog number: 2800184
• Manufacturer: Phoenix Contact
• EAN: 4046356518567
• Product family: VALVETRAB MS
• IEC/EN type: T1/T2; power supply systems: TN-S, TT
• Nominal voltage: 240/415 V AC
• UC (L-N/L-PE): 335 V AC; UC (N-PE): 264 V AC
• Nominal discharge current In (8/20 µs): 12.5 kA (L-N/L-PE), 50 kA (N-PE)
• Impulse discharge current Iimp (10/350 µs): 12.5 kA (L-N/L-PE), 50 kA (N-PE)
• Max. discharge current Imax (8/20 µs): 50 kA; ISCCR: 25 kA
• Voltage protection level Up (L-N): 1.2 kV; Up (L-PE): 2 kV; Up (N-PE): 1.7 kV
• Rated load current: 80 A
• Connection: screw (M5); rigid 1.5-35 mm², flexible 1.5-25 mm², AWG 15-2
• Dimensions (W x H x D): 71.2 x 89.8 x 77.5 mm; horizontal pitch: 4 Div.
• Color: black (RAL 9005); insulating material: PA 6.6/PBT
• Flammability: UL 94 V-0; degree of protection: IP20
• Operating temperature: -40°C to 80°C
• Weight (excl. packing): 638 g; mounting: DIN rail; positions: 4
• Pack size: 1 pc; country of origin: DE

Features and benefits:

• Pluggable protection modules allow easy testing and insulation measurement without system shutdown
• Industry-standard 1 HP overall width enables rapid installation using standard bridges
• 12.5 kA discharge capacity per position supports Lightning Protection Levels III and IV
• Vibration-resistant latching keeps plug-in modules firmly seated under shock (30g) and vibration (7.5g) loads

Applications:

• Service entrance surge protection for 3-phase TN-S and TT industrial power networks
• Main and sub-distribution boards in industrial and commercial buildings
• Electrical panels in Lightning Protection Zones III/IV requiring combined Type 1/2 protection

Compliant with IEC/EN Type 1/T2 classification; housing meets UL 94 V-0 flammability rating. Part of the Phoenix Contact VALVETRAB MS product family.

Also known as: Phoenix Contact VAL-MS-T1/T2 335/12.5/3+1, Phoenix 2800184, VALVETRAB MS lightning arrester, 3-phase Type 1/2 surge arrester.
