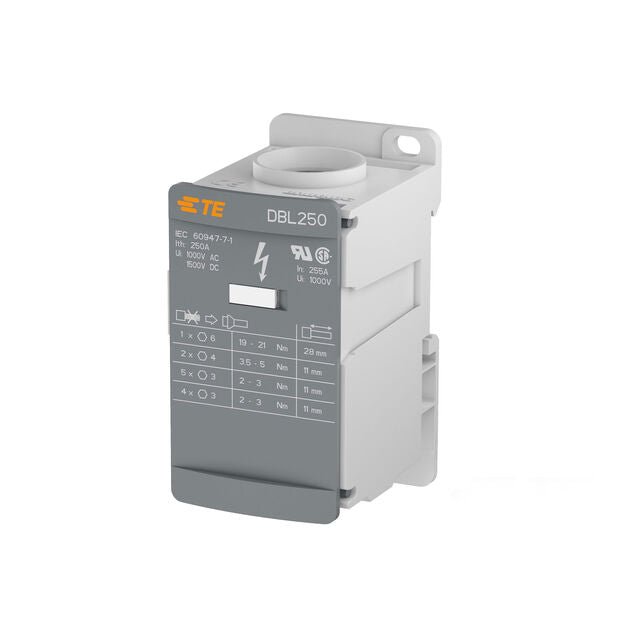

1SNL325010R0000 ABB DBL250 Distribution block 250A 1kV, Grey

The ABB Entrelec DBL250 (order code 1SNL325010R0000) is a single-pole power distribution block rated at 250 A and 1 kV, designed to split one incoming supply to multiple outgoing circuits. Part of the long-established DBL series, it mounts on a TS35 DIN rail via screw terminals and offers a compact 46 x 96 mm footprint with a polyamide body rated UL94 V-0 across an exceptionally wide temperature range.

Technical specifications

• Nominal current: 250 A
• Rated voltage: 1 kV
• Poles: single-pole (1 way)
• Connection type: screw terminal
• Mounting: DIN rail (TS35)
• Body material: polyamide, UL94 V-0
• Colour: dark grey
• Operating temperature: -55 to 110 °C
• Dimensions (W x H): 46 x 96 mm

Well suited to distribution boards, motor control centres, and industrial control panels where a high-current single-pole splice point is needed within a compact DIN rail assembly.
