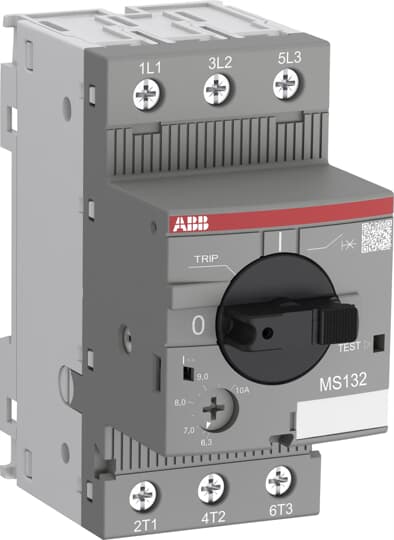

ABB MS132-10 1SAM350000R1010 MS132 Manual Motor Starter 6.3-10A

The ABB MS132-10 (article 1SAM350000R1010) is a manual motor starter - also referred to as a motor protection circuit breaker or manual motor protector - that lets operators switch motors on and off manually while protecting them from short-circuits, overload, and phase failures without the need for a separate fuse. It covers a current range of 6.3 A to 10 A and provides a rated service short-circuit breaking capacity of 100 kA at 400 VAC, housed in a compact 45 mm wide body.

Technical specifications:

• Series: MS132-10
• ABB article number: 1SAM350000R1010
• EAN: 4013614400100
• Current range: 6.3 A to 10 A
• Rated operational current (Ie): 10.0 A
• Short-circuit breaking capacity (Ics): 100 kA at 400 VAC
• Trip class: 10
• Width: 45 mm
• Compatible with three-phase and single-phase applications

Features and benefits:

• Protects motors against short-circuits, overload, and phase failures with no external fuse required
• Built-in disconnect function allows safe isolation of the motor circuit
• Rotary handle gives a clear visual indication of switch position and can be locked to block unauthorized operation
• Temperature compensation and trip-free mechanism support consistent protective performance
• Broad accessory ecosystem - auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks, and terminal spacers - enables flexible integration

Applications:

• Manual starting and stopping of motors in industrial control panels and switchgear
• Short-circuit and overload protection of three-phase motor circuits rated up to 10 A
• Single-phase motor protection in machinery and process equipment
• Installations requiring lockable motor isolation to prevent unauthorized switching

Also known as: ABB MS132-10, MS132-10 1SAM350000R1010, manual motor starter, motor protection circuit breaker, manual motor protector.
