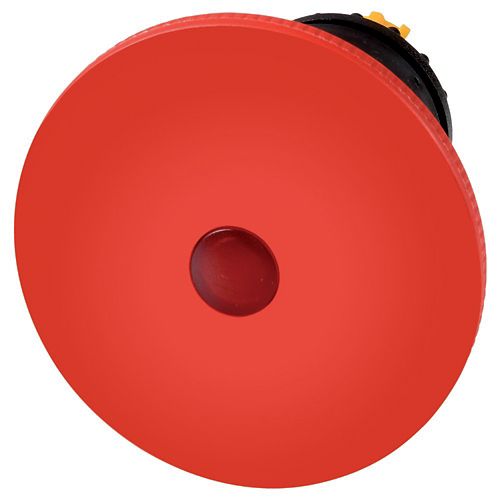

Eaton 152861 M22-PVL60P M22 Emergency Stop 60mm pull-to-release Illuminated

The Eaton M22-PVL60P is a palm-tree shaped, illuminated emergency stop and emergency switching off pushbutton from the RMQ-Titan Moeller series M22. The 60 mm red actuator features a pull-to-release latching function and is tamper-proof per ISO 13850 and EN 418. Rated IP66 and NEMA 4X, it operates reliably across an ambient temperature range of -25 °C to +70 °C.

Technical specifications:

• Model code: M22-PVL60P
• Catalog number: 152861
• Manufacturer: Eaton
• EAN: 4015081496396
• Actuator diameter: 60 mm
• Opening (panel cutout) diameter: 22.5 mm
• Actuator color: Red (RAL 3000)
• Base color: Yellow
• Unlocking method: Pull-to-release
• Switching function: Latching
• Actuating force: 50 N
• Illumination: LED element
• Degree of protection: IP66, NEMA 4X
• Ambient operating temperature: -25 °C to +70 °C
• Operating frequency: 600 operations/h
• Mechanical lifespan: 100,000 operations
• Shock resistance: 50 g, sinusoidal 11 ms per IEC/EN 60068-2-27
• Dimensions (H x W x D): 60 x 60 x 67 mm
• Weight: 0.051 kg
• Certifications: VDE 0660, IEC/EN 60947, DNV, GL, LR

Features and benefits:

• Tamper-proof palm-tree actuator certified per ISO 13850 and EN 418 for machine safety compliance
• Integrated LED illumination delivers clear visual status indication in low-light environments
• IP66 and NEMA 4X protection guards against dust ingress and high-pressure water jets
• Pull-to-release latching mechanism prevents unintended machine restart after actuation
• Wide temperature range (-25 °C to +70 °C) and cyclic damp-heat rating suit harsh industrial environments
• Marine-grade approvals (DNV, GL, LR) extend suitability to offshore and shipboard installations

Applications:

• Emergency stop stations on industrial machinery and automated production lines
• Outdoor control panels and wet-area operator interfaces
• Marine and offshore control systems requiring DNV, GL, or LR certification
• Conveyor systems, packaging lines, and robotic cell safety circuits
• Safety-critical control desks where ISO 13850 compliance is mandatory

Compliant with IEC/EN 60947 and VDE 0660; tamper-proof per ISO 13850 and EN 418. Part of the Eaton RMQ-Titan M22 modular control device series.
