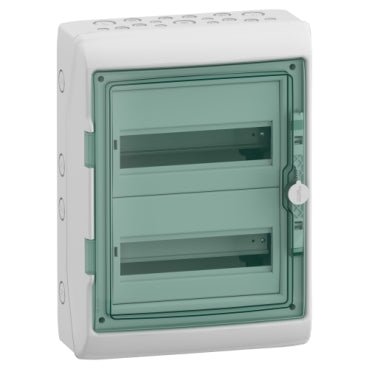

Schneider 13433 Kaedra Enclosure For Modular Device, 2x12 Modules, 2 Terminal Bl

The Schneider Electric 13433 is a Mureva surface-mounted enclosure designed to house modular devices across 2 rows of 12 modules each, for a total capacity of 24 x 18 mm modules. It includes 2 terminal blocks with 22 connection points each, a transparent reversible front cover, and a rated current of 63 A.

Technical specifications:

• Commercial reference: 13433
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Mureva
• Product type: Enclosure for modular devices
• Mounting: Surface mounting
• Number of rows: 2 horizontal rows
• Modules per row (18 mm): 12
• Total 18 mm modules: 24
• DIN rail rows (9 mm): 24
• Rated current [In]: 63 A
• Rail type: DIN
• Terminal blocks: 2 x earth/neutral (screw connection), 22 terminals each
• Terminal block conductors: 22 x 10 mm², 22 x 16 mm²
• PG ISO openings: 17
• Insulation class: Double insulation, Class II
• Enclosure material: Self-extinguishing polymer
• Cover type: Transparent, reversible
• Cover colour: Transparent green
• Enclosure colour: Light grey (RAL 7035)
• Dimensions (WxHxD): 340 x 460 x 160 mm
• Internal depth: 88 mm
• IP protection rating: IP65 per IEC 60529
• IK impact rating: IK09 per EN 50102
• Fire resistance: 650 °C per IEC 60695-2-1
• UV resistance: Class 3 per ISO 4582:2010
• Operating temperature: -25...60 °C
• Overvoltage category: II
• Locking: Optional lock
• Included accessories: 2 label sets, 2 cable ties, 1 busbar holder, 2 busbars with 22 terminals
• Weight: 3.495 kg
• Standards: EN 50262, IEC 61439-3, IEC 60695-2-1, IEC 60670

Features and benefits:

• IP65-rated enclosure provides full dust and water jet protection for reliable use in demanding environments
• Class II double insulation eliminates the need for protective earthing of the enclosure body
• Transparent reversible front cover allows circuit breaker status to be read without opening the enclosure
• Self-extinguishing polymer housing with 650 °C fire resistance meets IEC 60695-2-1 requirements
• Pre-fitted busbars and terminal blocks with 22 connection points per row simplify wiring and installation
• UV Class 3 resistance makes the enclosure suitable for outdoor and exposed installations

Applications:

• Residential and light commercial electrical distribution boards
• Surface-mounted consumer units in kitchens, utility rooms, or garages
• Outdoor or semi-exposed installations requiring IP65 protection
• Small commercial premises requiring a compact, pre-wired modular enclosure
• Renovation projects where flush mounting is not possible

Compliant with EN 50262, IEC 61439-3, IEC 60695-2-1, and IEC 60670. Part of the Schneider Electric Mureva range.

Also known as: Schneider 13433, Schneider Electric 13433, Mureva surface enclosure, modular device enclosure 2x12.
