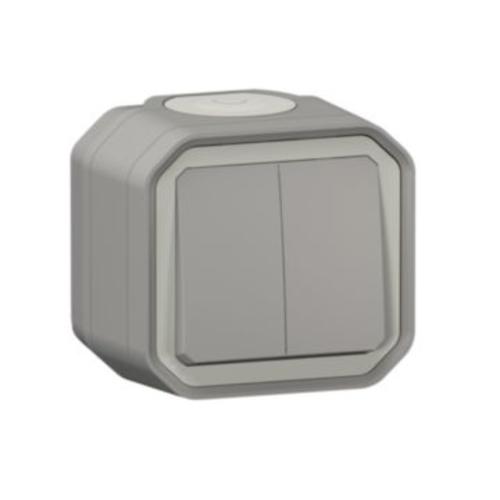

Legrand 069715L Plexo 2-Gang Switch or Push Button 10A IP55 Grey Surface

The Legrand 069715L is a Plexo dual-control mechanism configurable as a 2-gang 2-way switch or 2-gang push button. It is rated 10 A at 250 V~ with IP55 and IK08 for waterproof indoor and outdoor installations.

Technical specifications:

• Catalog reference: 069715L
• Manufacturer: Legrand
• EAN: 3414971881891
• Dimensions (W × H × D): 82 × 84.5 × 61 mm
• Method of operation: Rocker/button
• Mounting orientation: Horizontal
• Fastening: Mounting with screw
• Illuminated: No
• Mounting: Surface mounted
• Material: Thermoplastic
• Halogen-free: Yes
• Surface finish: Matt
• Colour: Grey
• RAL reference: 7046
• Degree of protection (IP): IP55
• Nominal voltage: 250 V
• Rated current (In): 10 A
• Impact resistance (IK): IK08
• Operating temperature: -10-40 °C
• Storage temperature: -25-60 °C
• Voltage type: AC
• Frequency: 50-60 Hz
• Connection type: Push-in clamp
• Terminal capacity: 1.5-2.5 mm²
• Cable types accepted: Flexible or rigid

Features and benefits:

• Halogen-free thermoplastic reduces toxic emissions in the event of fire.
• Compatible with the Plexo wiring-device range for matched waterproof installation.

Applications:

• Garages, cellars, workshops, and other dusty or damp interior locations.
• Outdoor weatherproof installations on terraces, in gardens, and at campsites.
• Industrial kitchens and wash-down areas requiring IP55 protection.
• Surface or flush wiring projects using the Plexo modular range.

Also known as: Legrand 069715L, 069715L, Plexo (Weatherproof).
