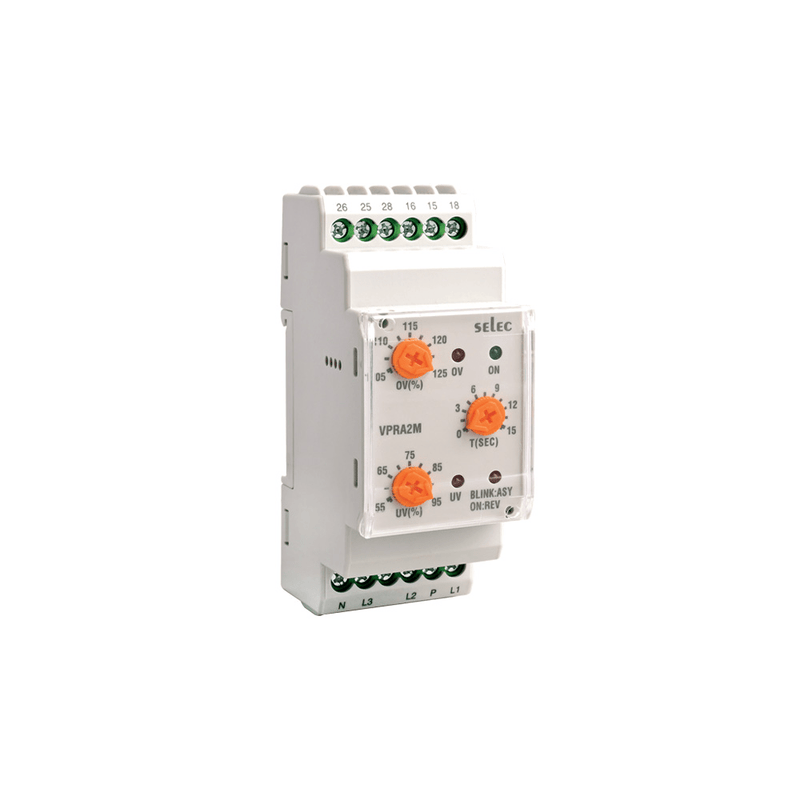

Selec VPRA2M-CE Voltage Protection Relay 1P/3P 127-288V AC 2 C/O

Selec VPRA2M-CE analogue voltage protection relay for single-phase and three-phase systems. It monitors over and under voltage, phase asymmetry, phase failure and phase sequence, with two changeover contacts.

Technical specifications:

• Commercial reference: VPRA2M-CE
• Manufacturer: Selec
• Measured parameters: under voltage, over voltage, phase asymmetry, phase failure, phase sequence
• Electrical connection: 1Ø-2W, 3Ø-4W
• Display: LED indication
• Trip time delay 0-15 s, power ON delay 0-15 s, recovery time delay 5 s ±200 ms
• Accuracy: trip setting ±5% of set value, time setting ±10% of F.S
• Output contact: 2 C/O (DPDT), NO/NC 5 A @ 250 V AC / 28 V DC
• Operating voltage: 127 to 288 V AC (L-N)
• Width: 35 mm, DIN rail mount
• CE
