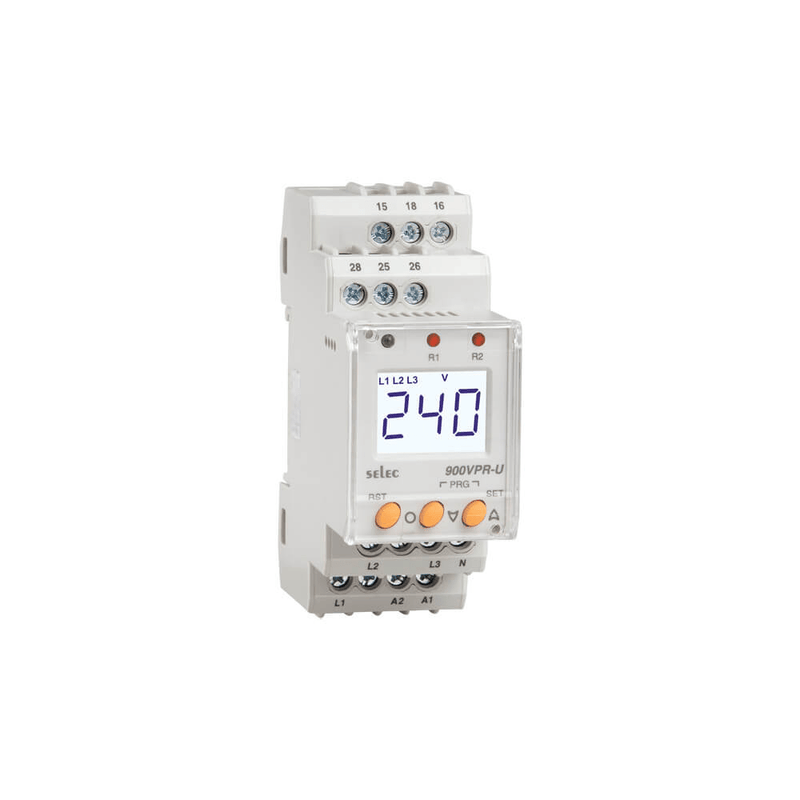

Selec 900VPR-BL-U-CE Voltage Protection Relay 3P 85-270V AC/DC
by SELEC
Free Shipping
Get free shipping on orders exceeding €300!
Original price
$57.89
-
Original price
$57.89
Original price
$57.89
$57.89
-
$57.89
Current price
$57.89
Selec 900VPR-BL-U-CE digital three-phase RMS voltage protection relay with a backlit LCD and a universal auxiliary supply. It monitors voltage, frequency, asymmetry, phase failure, phase sequence and neutral loss.
Technical specifications:
- Commercial reference: 900VPR-BL-U-CE
- Manufacturer: Selec
- Measured parameters: under and over voltage, under and over frequency, phase asymmetry, phase failure, neutral loss, phase sequence
- Electrical connection: 3Ø-3W, 3Ø-4W
- Display: 3 digit liquid crystal display with backlight
- Trip setting: 85 to 500 V AC L-L (3Ø-3W), 50 to 288 V AC L-N (3Ø-4W)
- Frequency setting 45-65 Hz, voltage asymmetry 5.0-30.0%
- Accuracy: trip voltage ±1% ±2 digits, frequency ±0.5% ±1 digit
- Output contact: 2 x 1 C/O (SPDT), NC 3 A @ 250 V AC, NO 5 A @ 250 V AC (res)
- Supply voltage: 85 to 270 V AC / DC
- Width: 35 mm, DIN rail mount
- CE, RoHS
When sold out, you can still preorder by requesting a quote below.
Important
The images shown are for illustration purposes only and may not be an exact
representation of the product.
