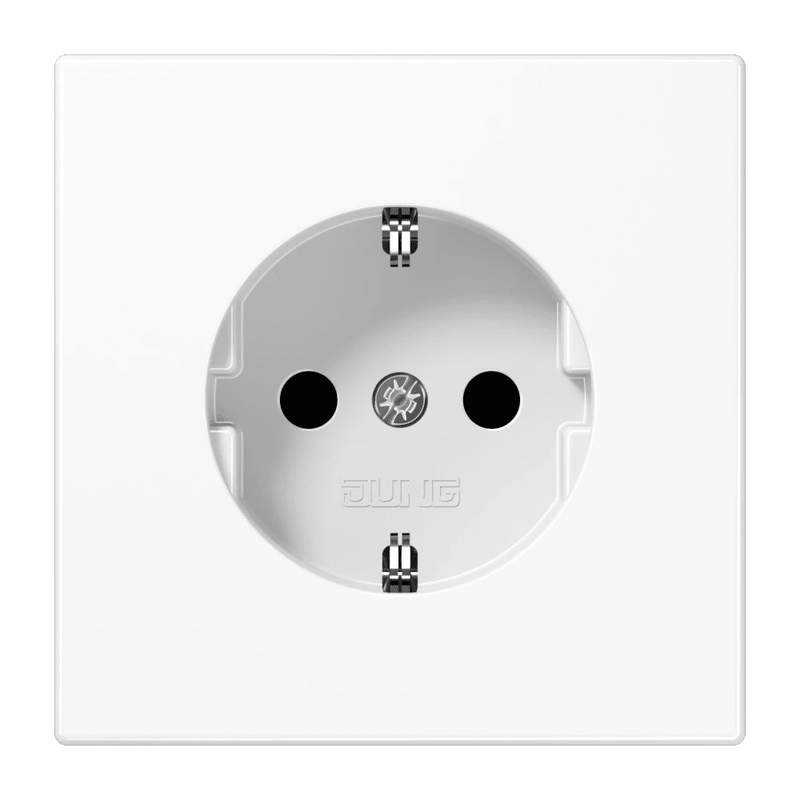

Jung LS1520WW SCHUKO Socket 16A 250V LS Range White Without Frame

The Jung LS1520WW is a SCHUKO socket insert from the LS range in alpine white, with screwless spring terminals for fast, tool-free wiring. It is flush-mounted and sold without a decorative frame; a compatible LS 990 series frame must be ordered separately.

Technical specifications:

• Part number: LS1520WW
• Manufacturer: Jung (Albrecht Jung GmbH)
• Series: LS range
• Type: SCHUKO socket (CEE 7/4, Type F)
• Rated current: 16A
• Rated voltage: 250V AC
• Connection: Screwless spring terminals (conductors up to 2.5mm2)
• Material: Duroplast
• Colour: Alpine white (WW)
• IP rating: IP20
• Dimensions: 70mm x 70mm
• Mounting: Flush mount
• Frame: Not included - compatible LS 990 frame required separately

Features and benefits:

• Screwless spring terminals allow fast installation without a screwdriver
• Duroplast construction provides higher impact resistance than standard thermoplastic
• Part of the LS range - compatible with LS switches, dimmers, and accessories for a coordinated installation

Applications:

• Living rooms, bedrooms, and hallways in residential buildings
• Office and commercial spaces requiring a white coordinated appearance
• Hotel rooms and hospitality installations
• Matching with LS range white switches for unified room aesthetics

Compliant with DIN VDE 0620 and IEC 60884.
